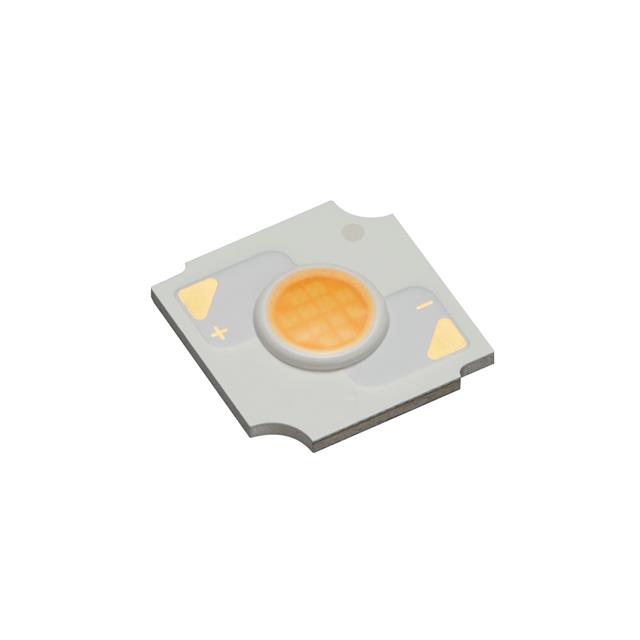

CLU7R3-0403E1-403H5X3

Active

Citizen

LED COB CLU7R3 NEUT WHT SQ 4000K

Search across all available documentation for this part.

Active

Citizen

LED COB CLU7R3 NEUT WHT SQ 4000K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.78

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU7R3 White, Neutral Square

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	CLU7R3-0403E1-403H5X3	CLU7R3 Series

CCT (K)	4000 K	4000 K
Color	Neutral, White	Neutral, White
Configuration	Square	Square
CRI (Color Rendering Index)	90	90 - 97
Current - Max [Max]	900 mA	900 mA
Current - Test	525 mA	525 mA
Features	With Connector	With Connector
Height [z]	1.4 mm	1.4 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	4.2 mm	4.2 mm
Lumens/Watt @ Current - Test	119 lm/W	109 - 119 lm/W
Luminous Flux @ Current/Temperature	809 lm	741 - 809 lm
Size / Dimension [x]	11.5 mm	11.5 mm
Size / Dimension [y]	11.5 mm	11.5 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	12.2 V	12.2 V

LED COB CLU7R3 NEUT WHT SQ 4000K

Part	Light Emitting Surface (LES) [diameter]	Current - Max [Max]	Configuration	Type	Voltage - Forward (Vf) (Typ)	Features	Color	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Lumens/Watt @ Current - Test	Temperature - Test	Luminous Flux @ Current/Temperature	Height [z]	Current - Test	CRI (Color Rendering Index)	CCT (K)
Citizen CLU7R3-0403E1-403H5X3	4.2 mm	900 mA	Square	Chip On Board (COB)	12.2 V	With Connector	Neutral, White	11.5 mm	11.5 mm	Flat	119 lm/W	85 °C	809 lm	1.4 mm	525 mA	90	4000 K
Citizen CLU7R3-0403E1-403H7X5	4.2 mm	900 mA	Square	Chip On Board (COB)	12.2 V	With Connector	Neutral, White	11.5 mm	11.5 mm	Flat	109 lm/W	85 °C	741 lm	1.4 mm	525 mA	97	4000 K
