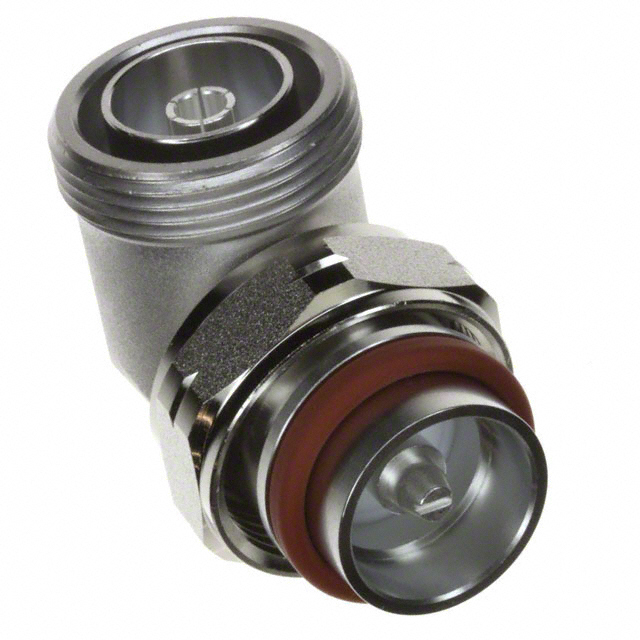

272150

Active

Amphenol RF

CONN ADAPT PLUG-JACK 7/16 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

272150

Active

Amphenol RF

CONN ADAPT PLUG-JACK 7/16 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	272150

Adapter Series	7/16 DIN to 7/16 DIN
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	7/16 Plug, Male Pin
Convert To (Adapter End)	Female Socket, 7/16 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C

272159 Series

Part	Center Contact Material	Housing Color	Center Contact Plating	Impedance	Mounting Type	Insertion Loss	Mating Cycles	Includes	Cable Group	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Number of Ports	Body Finish	Contact Termination	Connector Type	Body Material	Connector Style	Dielectric Material	Ingress Protection	Adapter Type	Conversion Type	Convert To (Adapter End)	Convert From (Adapter End)	Adapter Series	Cable Group	Includes	Mounting Feature	Features	Style	Center Gender
Amphenol RF 272115	Brass	Silver	Silver	50 Ohms	Free Hanging (In-Line) Right Angle	0.1 dB	500	1 Connector 1 Ferrule	Belden 9913 Belden 9914 LMR-400	3 GHz	155 °C	-55 °C	Crimp	1	White Bronze	Solder	Male Pin Plug	Brass	7/16 DIN	Polytetrafluoroethylene (PTFE)	Weatherproof
Amphenol RF 272150	Beryllium Copper		Gold	50 Ohms	Free Hanging (In-Line) Right Angle					7.5 GHz	165 °C	-65 ░C			White Bronze			Brass		Polytetrafluoroethylene (PTFE)		Plug to Jack	Same Series	7/16 Jack Female Socket	7/16 Plug Male Pin	7/16 DIN to 7/16 DIN
Amphenol RF 272159-10	Beryllium Copper	Silver	Silver	50 Ohms			500		RG-401	7.5 GHz			Solder	1	Silver	Push On	Female Socket Jack	Brass	7/16 DIN	Polytetrafluoroethylene (PTFE)	Weatherproof						0.25 in	1 pcs 1 pcs 1 pcs 1 pcs	Bulkhead - Front Side Nut
Amphenol RF 272110	Beryllium Copper	Silver	Silver	50 Ohms	Free Hanging (In-Line)		500		RG-401	7.5 GHz			Solder	1	White Bronze	Push On	Male Pin Plug	Brass	7/16 DIN	Polytetrafluoroethylene (PTFE)	Weatherproof						0.25 in
Amphenol RF 272173	Beryllium Copper	Silver	Silver	50 Ohms			500			7.5 GHz			Solder		White Bronze	Solder Cup	Female Socket Receptacle	Brass	7/16 DIN	Polytetrafluoroethylene (PTFE)									Flange
Amphenol RF 272134	Brass		Silver	50 Ohms	Free Hanging (In-Line)		500			6000 MHz	155 °C	-55 °C			White Bronze			Brass		Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	Plug to Plug	Same Series	7/16 Plug Male Pin	7/16 Plug Male Pin	7/16 DIN to 7/16 DIN				Low PIM	Straight	Male to Male
Amphenol RF 272132	Brass	Silver	Silver	50 Ohms			500			7.5 GHz	165 °C	-65 ░C	Solder	1	White Bronze	Solder Cup	Male Pin Plug	Brass	7/16 DIN	Polytetrafluoroethylene (PTFE)									Flange
Amphenol RF 272190	Beryllium Copper	Silver	Gold	50 Ohms			500			7.5 GHz			Solder	1	White Bronze	Solder	Female Socket Receptacle	Brass	7/16 DIN	Polytetrafluoroethylene (PTFE)	Weatherproof								Flange	Extended Insulation
Amphenol RF 272105	Brass	Silver	Gold	50 Ohms	Free Hanging (In-Line)		500	1 Connector 1 Contact 1 Ferrule	213 214 225 393 87A 8A 9 RG-8	3 GHz	155 °C	-55 °C	Crimp	1	White Bronze	Solder	Male Pin Plug	Brass	7/16 DIN	Polytetrafluoroethylene (PTFE)	Weatherproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 112.24
		10	$ 103.00
		25	$ 99.04
		50	$ 95.74
		100	$ 90.46

Description

General part information

272159 Series

Adapter Coaxial Connector 7/16 Plug, Male Pin To 7/16 Jack, Female Socket 50 Ohms

Documents

Technical documentation and resources

No documents available
