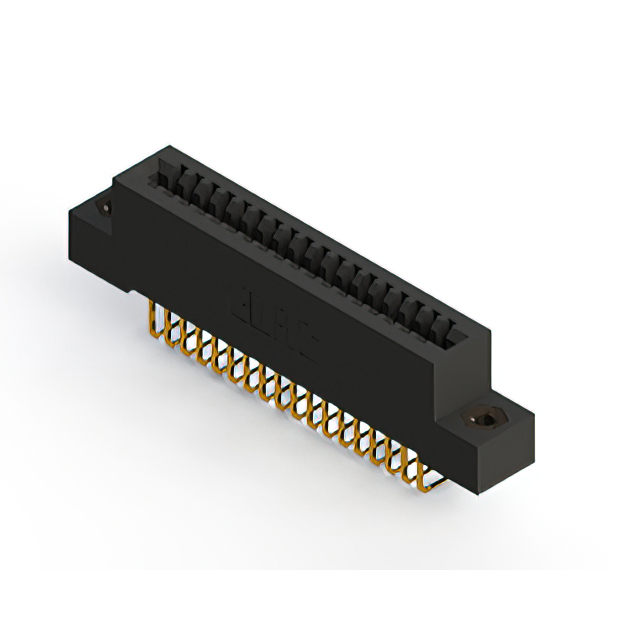

392-018-558-108
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-018-558-108
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-018-558-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 18 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap, Solder |
| Termination Rows | 1 |
392-018 Series
...
| Part | Mounting Type | Termination Rows | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Gender | Termination | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Contact Type | Card Type | Contact Finish | Number of Positions | Color | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 1 | 18 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | Solder | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | Non Specified - Single Edge | Gold | 18 | Black | |||
EDAC Inc. | Through Hole | 2 | 9 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | Wire Wrap | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Non Specified - Dual Edge | Gold | 18 | Black | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded |
EDAC Inc. | Through Hole | 2 | 9 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | Solder | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Non Specified - Dual Edge | Gold | 18 | Black | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | Through Hole | 1 | 18 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | Solder | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | Non Specified - Single Edge | Gold | 18 | Black | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded |
EDAC Inc. | Through Hole | 1 | 18 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | Solder | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | Non Specified - Single Edge | Gold | 18 | Black | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded |
EDAC Inc. | Through Hole Right Angle | 1 | 18 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | Solder Wire Wrap | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | Non Specified - Single Edge | Gold | 18 | Black | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded |
EDAC Inc. | Through Hole | 2 | 9 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | Wire Wrap | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Non Specified - Dual Edge | Gold | 18 | Black | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded |
EDAC Inc. | Through Hole | 1 | 18 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | Solder | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | Non Specified - Single Edge | Gold | 18 | Black | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded |
EDAC Inc. | Through Hole | 2 | 9 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | Wire Wrap | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Non Specified - Dual Edge | Gold | 18 | Black | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount |
EDAC Inc. | Through Hole Right Angle | 1 | 18 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Female | Solder Wire Wrap | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | Non Specified - Single Edge | Gold | 18 | Black | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
392-018 Series
18 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
