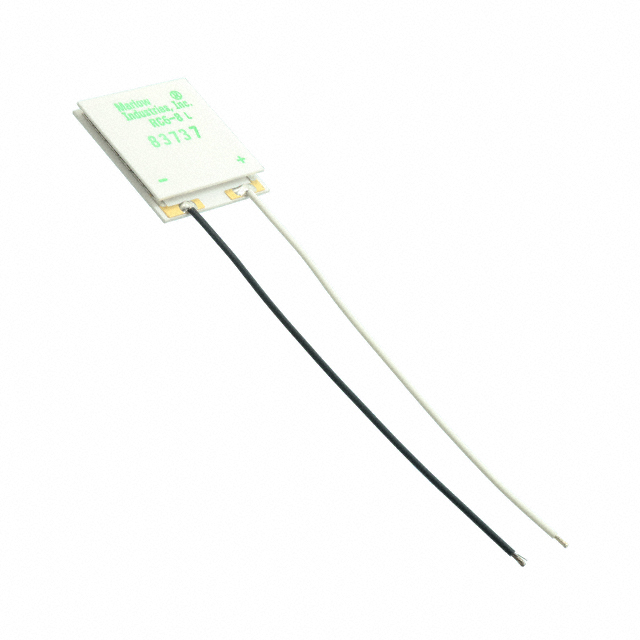

RC6-8-01L

Active

Marlow Industries, Inc.

TEM 29.97X29.97X3.53MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 29.97X29.97X3.53MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 39.0W @ 27°C 7.4 A 130°C

Technical documentation and resources

No documents available

Specification	RC6-8-01L	RC6-8 Series

Current - Max [Max]	7.4 A	7.4 A
Delta Tmax @ Th	65 °C	65 °C
Features	Lead Wires, Lapped	Lead Wires, Buss Wire, Lapped, Sealed
Height [z]	3.53 mm	3.53 - 3.63 mm
Number of Stages	1	1
Operating Temperature	130 °C	130 °C
Qmax @ Th	39 W	39 W
Resistance	900 mOhms	900 mOhms
Size / Dimension [x]	34.04 mm	34.04 mm
Size / Dimension [y]	29.97 mm	29.97 mm
Voltage - Max [Max]	8.2 V	8.2 V

Part	Features	Delta Tmax @ Th	Height [z]	Current - Max [Max]	Operating Temperature	Number of Stages	Voltage - Max [Max]	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Resistance
Marlow Industries, Inc. RC6-8-01	Lead Wires	65 °C	3.63 mm	7.4 A	130 °C	1	8.2 V	39 W	34.04 mm	29.97 mm	900 mOhms
Marlow Industries, Inc. RC6-8-04	Buss Wire, Lead Wires	65 °C	3.63 mm	7.4 A	130 °C	1	8.2 V	39 W	34.04 mm	29.97 mm	900 mOhms
Marlow Industries, Inc. RC6-8-01LS	Lapped, Lead Wires, Sealed	65 °C	3.53 mm	7.4 A	130 °C	1	8.2 V	39 W	34.04 mm	29.97 mm	900 mOhms
Marlow Industries, Inc. RC6-8-01S	Lead Wires, Sealed	65 °C	3.63 mm	7.4 A	130 °C	1	8.2 V	39 W	34.04 mm	29.97 mm	900 mOhms
Marlow Industries, Inc. RC6-8-01L	Lapped, Lead Wires	65 °C	3.53 mm	7.4 A	130 °C	1	8.2 V	39 W	34.04 mm	29.97 mm	900 mOhms
