70-23-0004-0001

Active

Parker Chomerics

1/4"DIA HEATSHRINK CHO-SHRINK

Search across all available documentation for this part.

Active

Parker Chomerics

1/4"DIA HEATSHRINK CHO-SHRINK

Technical Specifications

Parameters and characteristics for this part

Specification	70-23-0004-0001

Color	Silver
Inner Diameter - Supplied [diameter]	0.25 in
Inner Diameter - Supplied [diameter]	6.35 mm
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-54 °C
Recovered Wall Thickness [custom]	0.025 "
Recovered Wall Thickness [custom]	0.64 mm
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	191 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

Part	Shrinkage Ratio	Material	Shelf Life Start	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life	Shrink Temperature	Color
Parker Chomerics 70-23-0004-0001	2 to 1	Polyolefin (PO)	Date of Manufacture	0.025 "	0.64 mm	Tubing Flexible	-54 °C	135 °C	0.25 in	6.35 mm	24 Months	191 °C	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

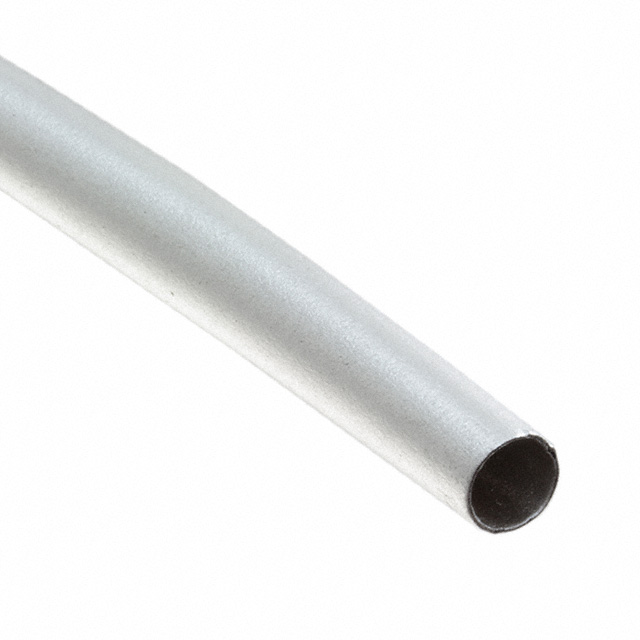

Heat Shrink Tubing, Flexible 0.250" (6.35mm) 2 to 1 Silver 1.00' (304.80mm, 12.00")
