Q-0305E0003006i

Active

Amphenol Custom Cable

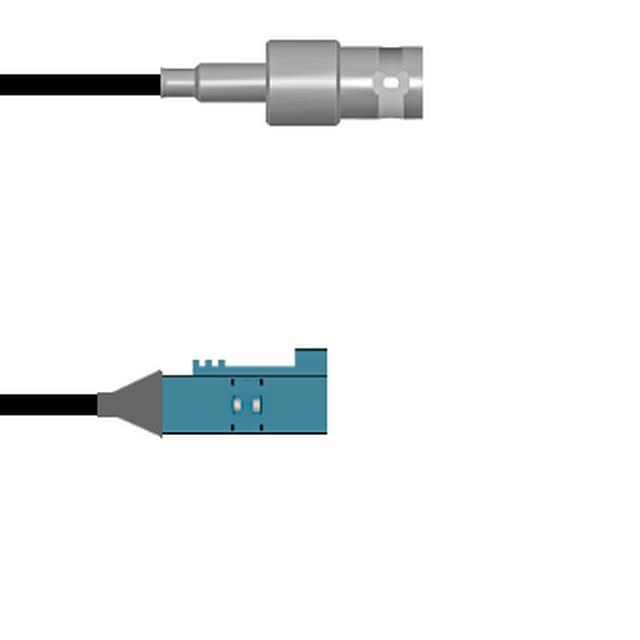

CBL ASSY BNC-FAKRA JACK-JACK 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0305E0003006i

Active

Amphenol Custom Cable

CBL ASSY BNC-FAKRA JACK-JACK 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0305E0003006i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	Fakra Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	BNC to Fakra

Q-0305E0 Series

Part	1st Connector	2nd Connector	Frequency - Max [Max]	Color	Style	Overall Impedance	Length	Length	Length	1st Connector Mounting Type	Features	2nd Connector Mounting Type	2nd Contact Gender	Cable Type	1st Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-0305E0003072i	BNC Jack	Fakra Jack	3 GHz	Black	BNC to Fakra	50 Ohms	6 ft	72 in	1.8 m	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	Female	RG-174	Female
Amphenol Custom Cable Q-0305E0003036i	BNC Jack	Fakra Jack	3 GHz	Black	BNC to Fakra	50 Ohms		36 in	91.44 cm	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	Female	RG-174	Female
Amphenol Custom Cable Q-0305E0003009i	BNC Jack	Fakra Jack	3 GHz	Black	BNC to Fakra	50 Ohms		9 "	228.6 mm	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	Female	RG-174	Female
Amphenol Custom Cable Q-0305E0005060i	BNC Jack	Fakra Jack	3 GHz	Copper	BNC to Fakra	50 Ohms	5 ft	5 '	1.5 m	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	Female	RG-316	Female
Amphenol Custom Cable Q-0305E0003024i	BNC Jack	Fakra Jack	3 GHz	Black	BNC to Fakra	50 Ohms		24 "	609.6 mm	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	Female	RG-174	Female
Amphenol Custom Cable Q-0305E0003006i	BNC Jack	Fakra Jack	3 GHz	Black	BNC to Fakra	50 Ohms		6 in	152.4 mm	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	Female	RG-174	Female
Amphenol Custom Cable Q-0305E0003018i	BNC Jack	Fakra Jack	3 GHz	Black	BNC to Fakra	50 Ohms				Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	Female	RG-174	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0305E0003.75M	BNC Jack	Fakra Jack	3 GHz	Black	BNC to Fakra	50 Ohms		29.53 "	750 mm	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	Female	RG-174	Female
Amphenol Custom Cable Q-0305E0003003M	BNC Jack	Fakra Jack	3 GHz	Black	BNC to Fakra	50 Ohms	9.8 '	118.1 in	3 m	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	Female	RG-174	Female
Amphenol Custom Cable Q-0305E0003001M	BNC Jack	Fakra Jack	3 GHz	Black	BNC to Fakra	50 Ohms	3.3 ft	39.4 in	1 m	Free Hanging (In-Line)	Shielded	Free Hanging (In-Line)	Female	RG-174	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 43.82
		25	$ 42.97
		50	$ 42.11
		100	$ 41.26
		250	$ 40.40

Description

General part information

Q-0305E0 Series

Cable Assembly Coaxial BNC to Fakra RG-174 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
