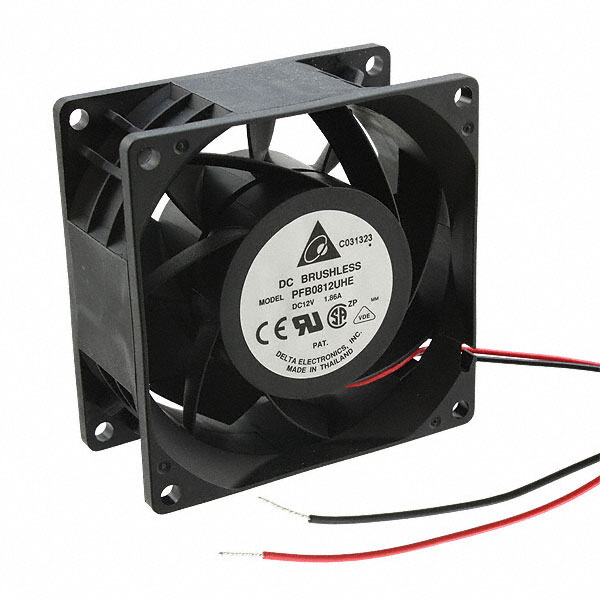

PFB0812UHE

Obsolete

Delta Electronics

FAN AXIAL 80X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Datasheet +2

PFB0812UHE

Obsolete

Delta Electronics

FAN AXIAL 80X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PFB0812UHE

Air Flow	3 m³/min
Air Flow	107.3 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.55 A
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	61 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	18.6 W
RPM	7500 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	1.368 in H2O
Static Pressure	340.8 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	200.03 g
Weight	0.441 lb
Width [y]	38 mm

PFB0812 Series

Part	Material - Frame	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Approval Agency	Material - Blade	RPM	Bearing Type	Width [y]	Ingress Protection	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Power (Watts)	Noise	Fan Type	Weight	Weight	Static Pressure	Static Pressure	Termination	Current Rating (Amps)	Features
Delta Electronics PFB0812UHE-T500	Plastic	3 m³/min	107.3 CFM	-10 °C	-10 °C	60 °C	60 °C	13.2 VDC	7 V	50000 Hrs	CE CSA UL VDE	Plastic	7500 RPM	Ball	38 mm	IP55 - Dust Protected Water Resistant	80 mm	80 mm	12 VDC	18.6 W	61 dB(A)	Tubeaxial	200.03 g	0.441 lb	1.368 in H2O	340.8 Pa	2 Wire Leads	1.55 A
Delta Electronics PFB0812UHE	Plastic	3 m³/min	107.3 CFM	-10 °C	-10 °C	60 °C	60 °C	13.2 VDC	7 V	50000 Hrs	CE CSA UL VDE	Plastic	7500 RPM	Ball	38 mm		80 mm	80 mm	12 VDC	18.6 W	61 dB(A)	Tubeaxial	200.03 g	0.441 lb	1.368 in H2O	340.8 Pa	2 Wire Leads	1.55 A
Delta Electronics PFB0812UHE-F00	Plastic	3 m³/min	107.3 CFM	-10 °C	-10 °C	60 °C	60 °C	13.2 VDC	7 V	50000 Hrs	CE CSA UL VDE	Plastic	7500 RPM	Ball	38 mm		80 mm	80 mm	12 VDC	18.6 W	61 dB(A)	Tubeaxial	200.03 g	0.441 lb	1.368 in H2O	340.8 Pa	3 Wire Leads	1.55 A	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics PFB0812UHE-EP	Plastic	2.57 m³/min	91.8 CFM	-25 °C		60 °C		13.8 VDC	10.2 VDC	50000 Hrs	CE CSA UL VDE	Plastic	6550 RPM	Ball	38 mm	IP56 - Dust Protected Water Resistant	80 mm	80 mm	12 VDC	11.88 W	57.5 dB	Tubeaxial	200.03 g	0.441 lb	0.974 in H2O	242.6 Pa	4 Wire Leads	990 mA	GR-487 (Salt Fog Protection) PWM Control Speed Sensor (Tach)
Delta Electronics PFB0812DHE-F00	Plastic	3.71 mł/min	132.6 CFM	-10 °C	-10 °C	60 °C	60 °C	13.2 VDC	7 V	50000 Hrs	CE CSA UL VDE	Plastic	9000 RPM	Ball	38 mm		80 mm	80 mm	12 VDC	33 W	65 dB	Tubeaxial	205.02 g	0.452 lb	2.03 in H2O	505.7 Pa	3 Wire Leads	2.75 A	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics PFB0812DHE-T500	Plastic	3.71 mł/min	132.6 CFM	-10 °C	-10 °C	60 °C	60 °C			50000 Hrs	CE CSA UL VDE	Plastic	9000 RPM	Ball	38 mm	IP55 - Dust Protected Water Resistant	80 mm	80 mm	12 VDC	33 W	65 dB	Tubeaxial	205.02 g	0.452 lb	2.03 in H2O	505.7 Pa	2 Wire Leads	2.75 A
Delta Electronics PFB0812DHE	Plastic	3.71 mł/min	132.6 CFM	-10 °C	-10 °C	60 °C	60 °C	13.2 VDC	7 V	50000 Hrs	CE CSA UL VDE	Plastic	9000 RPM	Ball	38 mm		80 mm	80 mm	12 VDC	33 W	65 dB	Tubeaxial	205.02 g	0.452 lb	2.03 in H2O	505.7 Pa	2 Wire Leads	2.75 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PFB0812 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 107.3 CFM (3.00m³/min) 2 Wire Leads
