HC4ED-HP-DC24V

Obsolete

Panasonic Electric Works

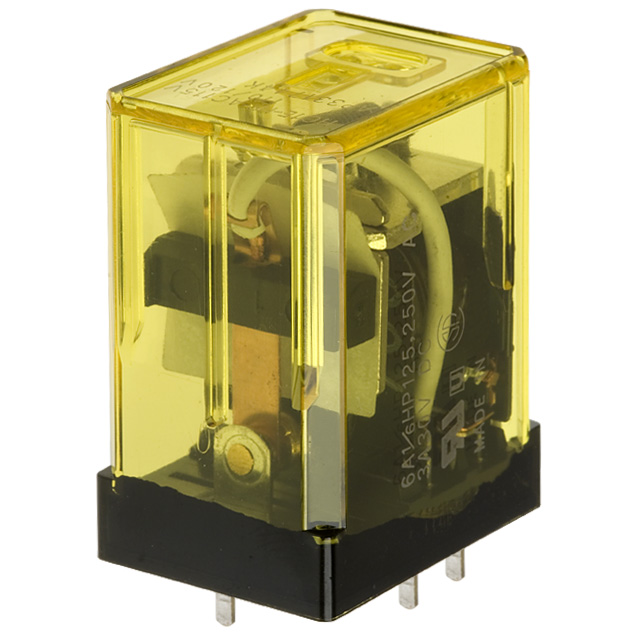

RELAY GEN PURPOSE 4PDT 1A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet General Appl Guidelines +2

HC4ED-HP-DC24V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 1A 24V

Deep-Dive with AI

DocumentsDatasheet General Appl Guidelines +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HC4ED-HP-DC24V

Approval Agency	VDE, CSA, UR
Coil Current	37 mA
Coil Resistance	650 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	1 A
Load - Max Switching [Max]	250 VA
Mounting Type	Through Hole
Must Operate Voltage	19.2 VDC
Must Release Voltage	2.4 VDC
Operate Time	20 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC
Termination Style	PC Pin

HC4ED-H Series

Part	Must Operate Voltage	Mounting Type	Contact Material	Operate Time	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching [Max]	Coil Type	Relay Type	Approval Agency	Coil Current	Release Time	Contact Form	Coil Resistance	Coil Voltage	Switching Voltage	Contact Rating (Current)	Termination Style
Panasonic Electric Works HC4ED-HP-DC48V	38.4 VDC	Through Hole	Gold (Au) Silver Nickel (AgNi)	20 ms	4.8 VDC	-40 °C	60 °C	250 VA	Non Latching	General Purpose	CSA UR VDE	18.5 mA	20 ms	4PDT (4 Form C)	2.6 kOhms	48 VDC	250 VAC	1 A	PC Pin
Panasonic Electric Works HC4ED-HP-DC24V	19.2 VDC	Through Hole	Gold (Au) Silver Nickel (AgNi)	20 ms	2.4 VDC	-40 °C	60 °C	250 VA	Non Latching	General Purpose	CSA UR VDE	37 mA	20 ms	4PDT (4 Form C)	650 Ohms	24 VDC	250 VAC	1 A	PC Pin
Panasonic Electric Works HC4ED-HTM-AC240V	192 VAC	Socketable	Gold (Au) Silver Nickel (AgNi)	20 ms	72 VAC/DC	-40 °C	60 °C	250 VA	Non Latching	General Purpose	CSA UR VDE	5.5 mA	20 ms	4PDT (4 Form C)	43.64 kOhms	240 VAC	250 VAC	1 A	Plug In
Panasonic Electric Works HC4ED-HTM-AC24V	19.2 VAC	Socketable	Gold (Au) Silver Nickel (AgNi)	20 ms	7.2 VAC	-40 °C	60 °C	250 VA	Non Latching	General Purpose	CSA UR VDE	50 mA	20 ms	4PDT (4 Form C)	480 Ohms	24 VAC	250 VAC	1 A	Plug In
Panasonic Electric Works HC4ED-HTM-AC12V	9.6 VAC/DC	Socketable	Gold (Au) Silver Nickel (AgNi)	20 ms	3.6 VAC	-40 °C	60 °C	250 VA	Non Latching	General Purpose	CSA UR VDE	100 mA	20 ms	4PDT (4 Form C)	120 Ohms	12 VAC/DC	250 VAC	1 A	Plug In
Panasonic Electric Works HC4ED-H-DC12V	9.6 VDC	Socketable	Gold (Au) Silver Nickel (AgNi)	20 ms	1.2 VDC	-40 °C	60 °C	250 VA	Non Latching	General Purpose	CSA UR VDE	75 mA	20 ms	4PDT (4 Form C)	160 Ohms	12 VDC	250 VAC	1 A	Plug In
Panasonic Electric Works HC4ED-H-DC110V	88 VDC	Socketable	Gold (Au) Silver Nickel (AgNi)	20 ms	11 VDC	-40 °C	60 °C	250 VA	Non Latching	General Purpose	CSA UR VDE	10 mA	20 ms	4PDT (4 Form C)		110 VDC	250 VAC	1 A	Plug In
Panasonic Electric Works HC4ED-H-DC6V	4.8 VDC	Socketable	Gold (Au) Silver Nickel (AgNi)	20 ms	0.6 VDC	-40 °C	60 °C	250 VA	Non Latching	General Purpose	CSA UR VDE	150 mA	20 ms	4PDT (4 Form C)	40 Ohms		250 VAC	1 A	Plug In
Panasonic Electric Works HC4ED-HP-AC240V	192 VAC	Through Hole	Gold (Au) Silver Nickel (AgNi)	20 ms	72 VAC/DC	-40 °C	60 °C	250 VA	Non Latching	General Purpose	CSA UR VDE	5 mA	20 ms	4PDT (4 Form C)	48 kOhms	240 VAC	250 VAC	1 A	PC Pin
Panasonic Electric Works HC4ED-H-DC24V	19.2 VDC	Socketable	Gold (Au) Silver Nickel (AgNi)	20 ms	2.4 VDC	-40 °C	60 °C	250 VA	Non Latching	General Purpose	CSA UR VDE	37 mA	20 ms	4PDT (4 Form C)	650 Ohms	24 VDC	250 VAC	1 A	Plug In
