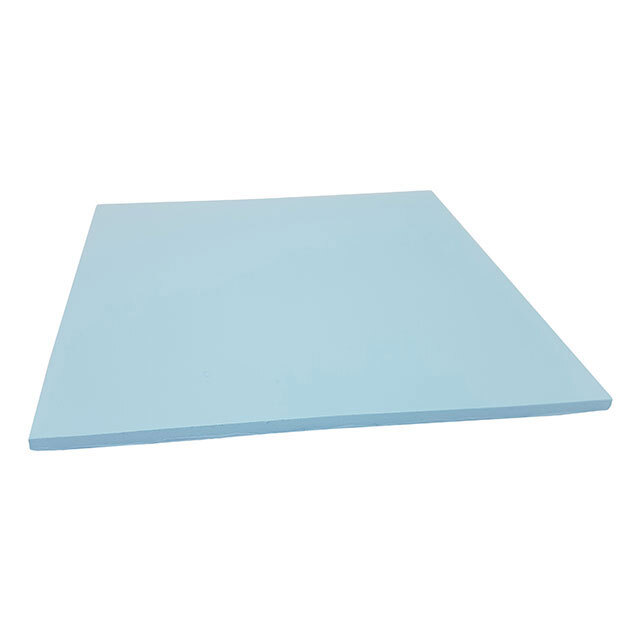

TG-A6200F-160-160-1.0
Obsoletet-Global Technology
THERM PAD 160MMX160MM BLUE
TG-A6200F-160-160-1.0
Obsoletet-Global Technology
THERM PAD 160MMX160MM BLUE
Description
General part information
TG-A6200 Series
Thermal Pad Blue 160.00mm x 160.00mm Square Tacky - One Side
Technical Specifications
Parameters and characteristics for this part
| Specification | TG-A6200F-160-160-1.0 |
|---|---|
| Adhesive | Tacky - One Side |
| Backing | Fiberglass |
| Carrier | Fiberglass |
| Color | Blue |
| Material | Silicone |
| Outline Length | 160 mm |
| Outline Width | 160 mm |
| Shape | Square |
| Shelf Life | 24 Months |
| Thermal Conductivity | 5 W/m-K |
| Thickness | 0.0394 in |
| Type | Pad, Sheet |
| Usage | Multi |
