TG-A6200-325-325-0.8

Obsolete

t-Global Technology

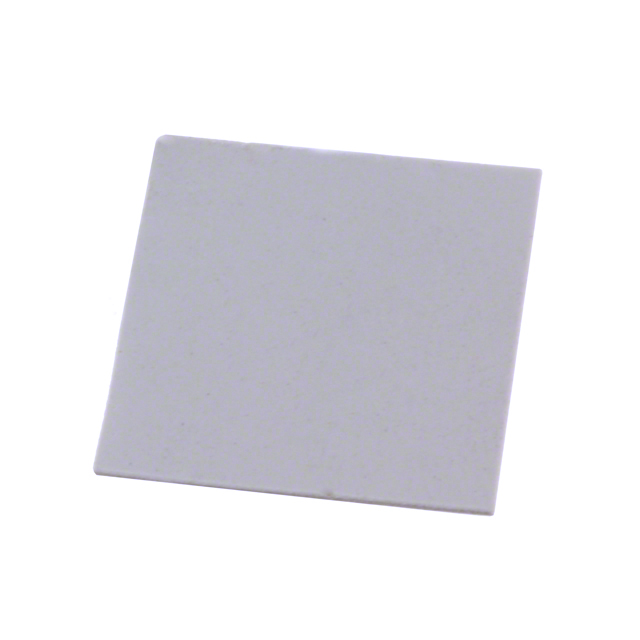

THERM PAD 325X325MM BLUE

Search across all available documentation for this part.

Obsolete

t-Global Technology

THERM PAD 325X325MM BLUE

Technical Specifications

Parameters and characteristics for this part

...

Part	Material	Adhesive	Thickness	Thickness	Shelf Life	Color	Shape	Outline [y]	Outline [x]	Usage	Thermal Conductivity	Backing, Carrier
t-Global Technology TG-A6200-10-10-5.0	Silicone	Tacky - Both Sides	0.197 "	5 mm	24 Months	Blue	Square	10 mm	10 mm	Multi	6.2 W/m-K
t-Global Technology TG-A6200F-100-100-3.0	Silicone	Tacky - One Side	0.118 in	3 mm	24 Months	Blue	Square	100 mm	100 mm	Multi	5 W/m-K	Fiberglass
t-Global Technology TG-A6200-5-5-3.0	Silicone	Tacky - Both Sides	0.118 in	3 mm	24 Months	Blue	Square	5 mm	5 mm	Multi	6.2 W/m-K
t-Global Technology TG-A6200-325-325-0.8	Silicone	Tacky - Both Sides	0.031 in	0.787 mm	24 Months	Blue	Square	325 mm	325 mm	Multi	6.2 W/m-K
t-Global Technology TG-A6200-30-30-0.5	Silicone	Tacky - Both Sides	0.0197 in	0.5 mm	24 Months	Blue	Square	30 mm	30 mm	Multi	6.2 W/m-K
t-Global Technology TG-A6200-28-28-1.0	Silicone	Tacky - Both Sides	0.0394 in	1 mm	24 Months	Blue	Square	28 mm	28 mm	Multi	6.2 W/m-K
t-Global Technology TG-A6200-25-25-1.0	Silicone	Tacky - Both Sides	0.0394 in	1 mm	24 Months	Blue	Square	25 mm	25 mm	Multi	6.2 W/m-K
t-Global Technology TG-A6200-25-25-5.0	Silicone	Tacky - Both Sides	0.197 "	5 mm	24 Months	Blue	Square	25 mm	25 mm	Multi	6.2 W/m-K
t-Global Technology TG-A6200-15-15-2.0	Silicone	Tacky - Both Sides	0.079 in	2 mm	24 Months	Blue	Square	15 mm	15 mm	Multi	6.2 W/m-K
t-Global Technology TG-A6200-25-25-4.0	Silicone	Tacky - Both Sides	0.157 in	4 mm	24 Months	Blue	Square	25 mm	25 mm	Multi	6.2 W/m-K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 85.34

General part information

Thermal Pad Blue 325.00mm x 325.00mm Square Tacky - Both Sides
