844001AGILF
ObsoleteFEMTOCLOCK CRYSTAL-TO-LVDS CLOCK GENERATOR
844001AGILF
ObsoleteFEMTOCLOCK CRYSTAL-TO-LVDS CLOCK GENERATOR
Description
General part information
844001I Series

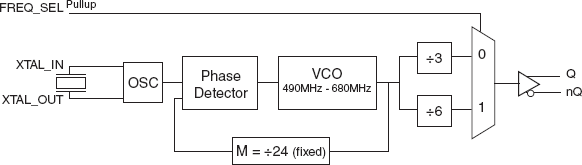

The 844001I is a Fibre Channel clock generator that uses an 18pF parallel resonant crystal over the range of 20.4MHz - 28.3MHz. For Fibre Channel applications, a 26.5625MHz crystal is used. The frequency select pin allows the device to generate either 106.25MHz or 212.5MHz from a 26.5625MHz crystal. To generate 187.5MHz for 12Gb Ethernet, a 23.4375MHz crystal is used. The 844001I uses our 3rd generation low phase noise VCO technology and can achieve <1ps typical rms phase jitter, easily meeting Fibre Channel and Ethernet jitter requirements. The 844001I is packaged in a small 8-pin TSSOP, making it ideal for use in systems with limited board space.
Technical Specifications
Parameters and characteristics for this part
| Specification | 844001AGILF |
|---|---|
| Differential Input | No |
| Differential Output | Yes |
| Divider | Yes |
| Frequency - Max | 226.66 MHz |
| Input | Crystal |
| Input Ratio | 1 |
| Mounting Type | Surface Mount |
| Multiplier | Yes |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVDS |
| Output Ratio | 1 |
| Package Length | 0.173 in |
| Package Name | 8-TSSOP |
| Package Width | 4.4 mm |
| PLL | Yes |
| Type | Clock Generator, Multiplexer |
| Voltage - Supply (Maximum) | 3.465 V |
| Voltage - Supply (Minimum) | 2.375 V |
