05930800
ActiveRELAY FOR TIME-DELAYED DEENERG. 30 SEC.
05930800
ActiveRELAY FOR TIME-DELAYED DEENERG. 30 SEC.
Description
General part information
05930800 Series

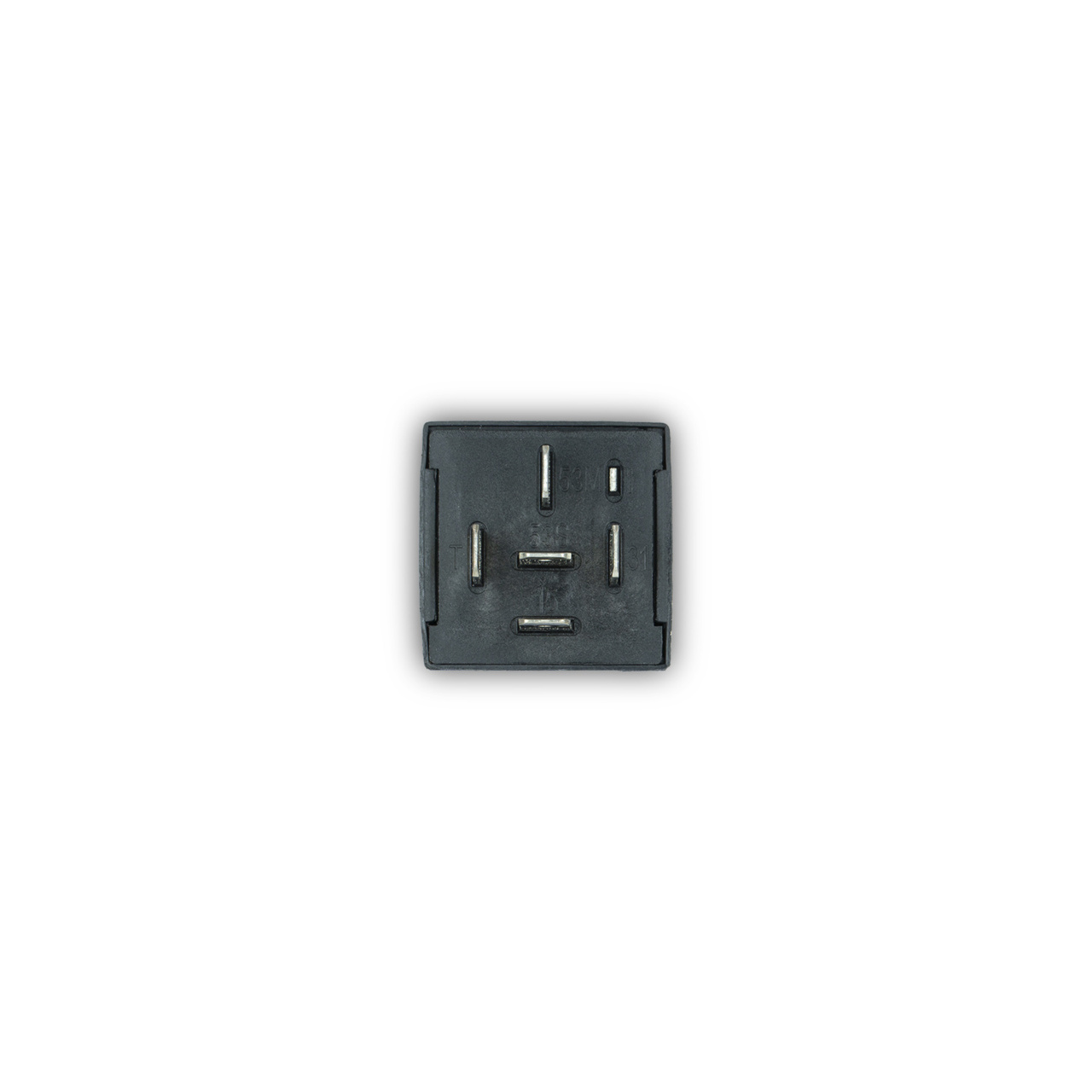

The 05930100 Series 32V Time Delay Relay with 24V Coil is a device with low current absorption that triggers a relay contact after a programmed time via an electronic circuit. This model (05930800) is de-energizing with a 30-second time delay. It has single-pole, double-throw (SPDT) circuitry and a continuous current rating of 5A.
Technical Specifications
Parameters and characteristics for this part
| Specification | 05930800 |
|---|---|
| Circuit | SPDT (1 Form C) |
| Contact Rating (Current) | 5 A |
| Delay Time (Fixed) | 30 Sec |
| Delay Time Mode | Fixed |
| Function | Off-Delay |
| Mounting Type | Panel Mount |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In |
| Timing Adjustment Method | Fixed |
| Voltage - Supply | 24 VDC |
| Voltage - Supply (Option 1) | 24 VAC |
| Voltage - Supply (Option 2) | 24 DC |
