776200-1
ActiveTE Connectivity AMP Connectors

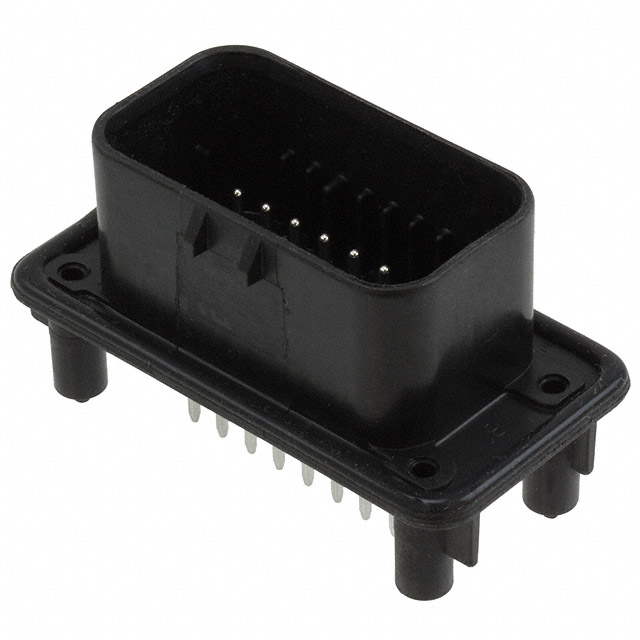

CONN HEADER VERT 23POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
776200-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 23POS 4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 776200-1 | 776200 Series |
|---|---|---|
| Applications | Industrial, Automotive | Industrial, Automotive |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Gold-Palladium |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Sealable, Mounting Flange | Sealable, Mounting Flange |
| Insulation Color | Black | Black, Natural, Gray |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 23 | 23 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 105 ░C | 105 - 125 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.157 " | 0.157 " |
| Pitch - Mating | 4 mm | 4 mm |
| Row Spacing - Mating | 0.157 in | 0.157 in |
| Row Spacing - Mating | 4 mm | 4 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
776200 Series
CONN HEADER VERT 23POS 4MM
| Part | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Contact Shape | Insulation Color | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Voltage Rating | Termination | Fastening Type | Number of Positions | Contact Material | Style | Mounting Type | Number of Rows | Features | Applications | Shrouding | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 776200-1 | Male Pin | -40 °C | 105 ░C | Polybutylene Terephthalate (PBT), Glass Filled | 0.157 " | 4 mm | Varies by Wire Gauge | Circular | Black | Header | 0.157 in | 4 mm | All | 250 VAC | Solder | Locking Ramp | 23 | Brass | Board to Cable/Wire | Panel Mount, Through Hole | 3 | Mounting Flange, Sealable | Automotive, Industrial | Shrouded - 4 Wall | |
TE Connectivity AMP Connectors 776200-2 | Male Pin | -40 °C | 105 ░C | Polybutylene Terephthalate (PBT), Glass Filled | 0.157 " | 4 mm | Varies by Wire Gauge | Circular | Natural | Header | 0.157 in | 4 mm | All | 250 VAC | Solder | Locking Ramp | 23 | Brass | Board to Cable/Wire | Panel Mount, Through Hole | 3 | Mounting Flange, Sealable | Automotive, Industrial | Shrouded - 4 Wall | |
TE Connectivity AMP Connectors 1-776200-2 | Male Pin | -40 °C | 125 °C | Polybutylene Terephthalate (PBT), Glass Filled | 0.157 " | 4 mm | Varies by Wire Gauge | Circular | Natural | Header | 0.157 in | 4 mm | All | 250 VAC | Solder | Locking Ramp | 23 | Brass | Board to Cable/Wire | Panel Mount, Through Hole | 3 | Mounting Flange, Sealable | Automotive, Industrial | Shrouded - 4 Wall | Gold-Palladium |
TE Connectivity AMP Connectors 1-776200-4 | Male Pin | -40 °C | 125 °C | Polybutylene Terephthalate (PBT), Glass Filled | 0.157 " | 4 mm | Varies by Wire Gauge | Circular | Gray | Header | 0.157 in | 4 mm | All | 250 VAC | Solder | Locking Ramp | 23 | Brass | Board to Cable/Wire | Panel Mount, Through Hole | 3 | Mounting Flange, Sealable | Automotive, Industrial | Shrouded - 4 Wall | Gold-Palladium |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.40 | |
| 40 | $ 10.03 | |||
| 120 | $ 8.94 | |||
| 520 | $ 8.56 | |||
| 1000 | $ 7.63 | |||
Description
General part information
776200 Series
Connector Header Panel Mount, Through Hole 23 position 0.157" (4.00mm)
