M80-8420542

Active

Harwin Inc.

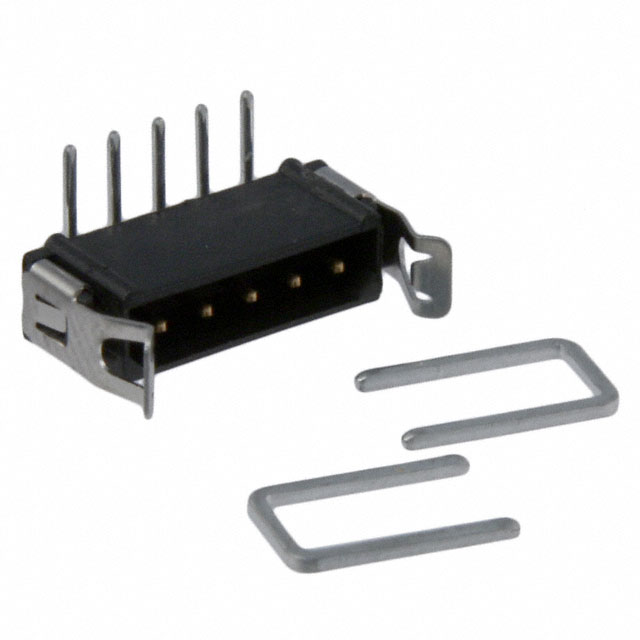

5 POS. MALE SIL HORIZONTAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet M80-001 +2

M80-8420542

Active

Harwin Inc.

5 POS. MALE SIL HORIZONTAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet M80-001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8420542

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Lock
Features	Strain Relief Clips
Insulation Color	Black
Insulation Height	0.156 in
Insulation Height	3.96 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

M80-842 Series

Part	Fastening Type	Mounting Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Material	Contact Finish - Post	Insulation Color	Current Rating (Amps)	Features	Number of Positions	Style	Connector Type	Insulation Material	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Number of Rows	Insulation Height	Insulation Height	Voltage Rating	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Contact Finish Thickness - Post
Harwin Inc. M80-8420445	Latch Lock	Through Hole Right Angle	Gold	29.5 Áin	0.75 Ám	UL94 V-0	29.5 µin	0.75 µm	Circular	Phosphor Bronze	Gold	Black	2.2 A	Strain Relief Clips	4	Board to Board Cable	Header	Polyphenylene Sulfide (PPS) Glass Filled	0.118 in	3 mm	All	1	0.156 in	3.96 mm	120 VDC	Shrouded - 4 Wall	-55 °C	125 °C	Male Pin	0.079 in	2 mm	Solder
Harwin Inc. M80-8420542	Latch Lock	Through Hole Right Angle	Gold	29.5 Áin	0.75 Ám	UL94 V-0		3 µm	Circular	Phosphor Bronze	Tin	Black	2.2 A	Strain Relief Clips		Board to Board Cable	Header	Polyphenylene Sulfide (PPS) Glass Filled	0.118 in	3 mm	All	1	0.156 in	3.96 mm	120 VDC	Shrouded - 4 Wall	-55 °C	125 °C	Male Pin	0.079 in	2 mm	Solder	118.1 µin
Harwin Inc. M80-8420642	Latch Lock	Through Hole Right Angle	Gold	29.5 Áin	0.75 Ám	UL94 V-0		3 µm	Circular	Phosphor Bronze	Tin	Black	2.2 A	Strain Relief Clips	6	Board to Board Cable	Header	Polyphenylene Sulfide (PPS) Glass Filled	0.118 in	3 mm	All	1	0.156 in	3.96 mm	120 VDC	Shrouded - 4 Wall	-55 °C	125 °C	Male Pin	0.079 in	2 mm	Solder	118.1 µin
Harwin Inc. M80-8420442	Latch Lock	Through Hole Right Angle	Gold	29.5 Áin	0.75 Ám	UL94 V-0		3 µm	Circular	Phosphor Bronze	Tin	Black	2.2 A	Strain Relief Clips	4	Board to Board Cable	Header	Polyphenylene Sulfide (PPS) Glass Filled	0.118 in	3 mm	All	1	0.156 in	3.96 mm	120 VDC	Shrouded - 4 Wall	-55 °C	125 °C	Male Pin	0.079 in	2 mm	Solder	118.1 µin
Harwin Inc. M80-8420245	Latch Lock	Through Hole Right Angle	Gold	29.5 Áin	0.75 Ám	UL94 V-0	29.5 µin	0.75 µm	Circular	Phosphor Bronze	Gold	Black	2.2 A	Strain Relief Clips	2	Board to Board Cable	Header	Polyphenylene Sulfide (PPS) Glass Filled	0.118 in	3 mm	All	1	0.156 in	3.96 mm	120 VDC	Shrouded - 4 Wall	-55 °C	125 °C	Male Pin	0.079 in	2 mm	Solder
Harwin Inc. M80-8420345	Latch Lock	Through Hole Right Angle	Gold	29.5 Áin	0.75 Ám	UL94 V-0	29.5 µin	0.75 µm	Circular	Phosphor Bronze	Gold	Black	2.2 A	Strain Relief Clips		Board to Board Cable	Header	Polyphenylene Sulfide (PPS) Glass Filled	0.118 in	3 mm	All	1	0.156 in	3.96 mm	120 VDC	Shrouded - 4 Wall	-55 °C	125 °C	Male Pin	0.079 in	2 mm	Solder
Harwin Inc. M80-8420242	Latch Lock	Through Hole Right Angle	Gold	29.5 Áin	0.75 Ám	UL94 V-0		3 µm	Circular	Phosphor Bronze	Tin	Black	2.2 A	Strain Relief Clips	2	Board to Board Cable	Header	Polyphenylene Sulfide (PPS) Glass Filled	0.118 in	3 mm	All	1	0.156 in	3.96 mm	120 VDC	Shrouded - 4 Wall	-55 °C	125 °C	Male Pin	0.079 in	2 mm	Solder	118.1 µin
Harwin Inc. M80-8420742	Latch Lock	Through Hole Right Angle	Gold	29.5 Áin	0.75 Ám	UL94 V-0		3 µm	Circular	Phosphor Bronze	Tin	Black	2.2 A	Strain Relief Clips	7	Board to Board Cable	Header	Polyphenylene Sulfide (PPS) Glass Filled	0.118 in	3 mm	All	1	0.156 in	3.96 mm	120 VDC	Shrouded - 4 Wall	-55 °C	125 °C	Male Pin	0.079 in	2 mm	Solder	118.1 µin
Harwin Inc. M80-8420342	Latch Lock	Through Hole Right Angle	Gold	29.5 Áin	0.75 Ám	UL94 V-0		3 µm	Circular	Phosphor Bronze	Tin	Black	2.2 A	Strain Relief Clips		Board to Board Cable	Header	Polyphenylene Sulfide (PPS) Glass Filled	0.118 in	3 mm	All	1	0.156 in	3.96 mm	120 VDC	Shrouded - 4 Wall	-55 °C	125 °C	Male Pin	0.079 in	2 mm	Solder	118.1 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.31
		18	$ 3.92
		108	$ 3.45
		504	$ 2.93
		1008	$ 2.50
Newark	Each	250	$ 3.32
		500	$ 3.06
		1000	$ 2.81
		2500	$ 2.53

Description

General part information

M80-842 Series

Connector Header Through Hole, Right Angle 5 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M80, M83 Series Spec Sheet

Datasheet
