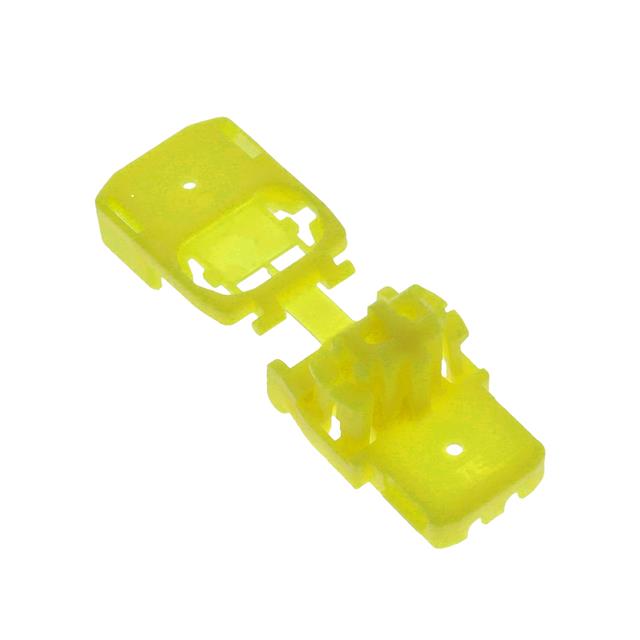

1612121-4

Active

TE Connectivity Raychem Cable Protection

CONN HOUSING PL 2 POS 3.1MM CRIMP ST CABLE MOUNT YELLOW BAG

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN HOUSING PL 2 POS 3.1MM CRIMP ST CABLE MOUNT YELLOW BAG

Technical Specifications

Parameters and characteristics for this part

Specification	1612121-4

Color	Yellow
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Lever Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Row Spacing	0.122 in
Row Spacing	3.1 mm

Part	Accessory Type	Contact Termination	Insulation Material	Color	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Features	Fastening Type	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Row Spacing	Row Spacing
TE Connectivity Raychem Cable Protection 1473369-5	Shorting Device
TE Connectivity Raychem Cable Protection 1473139-1		Crimp	Polybutylene Terephthalate (PBT)	Yellow	Free Hanging (In-Line)	3.1 mm	0.122 in	1	Female Socket	Receptacle	-30 ░C	80 C	2	Terminal Position Lock (TPA)	Push-Pull
TE Connectivity Raychem Cable Protection 353376-3		Crimp														Gold	20 AWG	22 AWG	Socket
TE Connectivity Raychem Cable Protection 1473369-4
TE Connectivity Raychem Cable Protection 1473369-9
TE Connectivity Raychem Cable Protection 1473369-3
TE Connectivity Raychem Cable Protection 1827120-1	Locking Button
TE Connectivity Raychem Cable Protection 1473369-7
TE Connectivity Raychem Cable Protection 1612121-4		Crimp	Polybutylene Terephthalate (PBT)	Yellow	Free Hanging (In-Line)			2	Female Socket	Plug	-30 ░C	80 C	2		Lever Lock					0.122 in	3.1 mm
TE Connectivity Raychem Cable Protection 1612122-1	Locking Button

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Housing, Housing for Female Terminals, Wire-to-Board / Wire-to-Device, 3.1 mm [.12 in] Centerline, Yellow, AMP Auto Squib Products
