PE0S0DZ6C

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.54

General part information

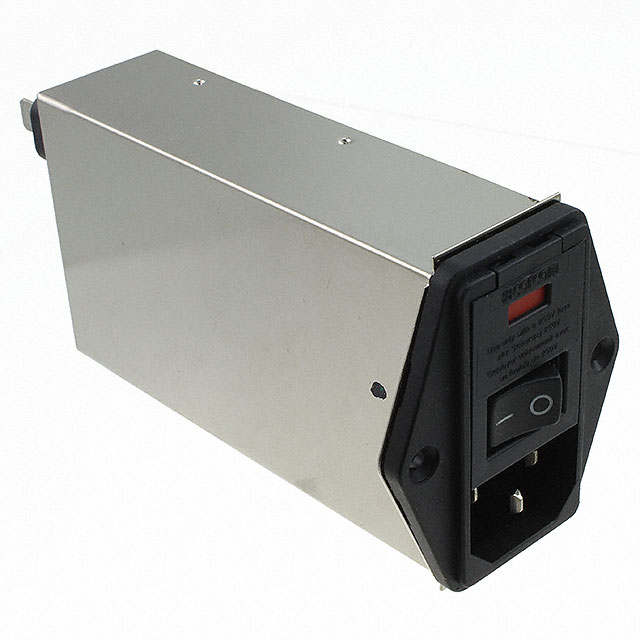

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PE0S0DZ6C	PE0S Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A	3 - 10 A
Current Rating - Filter	6 A	3 - 10 A
Features	-	Conversion Clip, Shielded, Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Twin Fused, Fuse Holder
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions	-	Variable Size
Panel Cutout Dimensions [x]	29.21 mm	29.21 mm
Panel Cutout Dimensions [y]	55.91 mm	55.91 mm
Panel Thickness	-	0.079 - 0.114 "
Panel Thickness	-	0.031 "
Panel Thickness	-	2 mm
Panel Thickness	-	0.79 mm
Panel Thickness	-	2.9 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	0.187 "	0.187 "
Termination	4.7 mm	4.7 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Type	Termination	Termination	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Style	Filter Type	Mounting Type	Fuse Holder, Drawer	Current Rating - Filter	Voltage Rating - Appliance Inlet	Switch Features	Current Rating - Appliance Inlet	Approval Agency	Panel Cutout Dimensions	Features	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]
TE Connectivity Corcom Filters PE0S0DZ6C	Receptacle, Male Blades - Module	0.187 "	4.7 mm	Quick Connect	29.21 mm	55.91 mm	IEC 320-C14	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	Fuse Holder, Twin Fused	6 A	120 VAC	Switch On-Off	6 A	CSA, UL, VDE
TE Connectivity Corcom Filters PE0SSSSXA	Receptacle, Male Blades - Module	0.187 "	4.7 mm	Quick Connect			IEC 320-C14	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	Fuse Holder	10 A	120 VAC	Switch On-Off	10 A	CSA, UL, VDE	Variable Size	Conversion Clip, Shielded, Voltage Selector	0.079 "	0.031 "	2 mm	0.79 mm
TE Connectivity Corcom Filters PE0S0DS30	Receptacle, Male Blades - Module	0.187 "	4.7 mm	Quick Connect			IEC 320-C14	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	Fuse Holder, Twin Fused	3 A	120 VAC	Switch On-Off	3 A	CSA, UL, VDE	Variable Size		0.114 in	0.031 "		0.79 mm	2.9 mm
