454926-E

Active

TE Connectivity Raychem Cable Protection

CONN MICRO SOCKET STRIP F 16 POS 0.8MM SOLDER ST SMD T/R

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN MICRO SOCKET STRIP F 16 POS 0.8MM SOLDER ST SMD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	454926-E

Connector Type	Female Sockets, Array
Contact Finish	Gold
Features	Pick and Place, Board Guide, Solder Retention
Height Above Board [z]	8 mm
Height Above Board [z]	0.315 in
Mounting Type	Surface Mount
Number of Positions	16
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Features	Height Above Board [z]	Height Above Board [z]	Mounting Type	Number of Positions	Connector Type	Number of Positions	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Current Rating (Amps)	Termination	Contact Finish - Post	Insulation Color	Insulation Material	Contact Material	Contact Shape	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating
TE Connectivity Raychem Cable Protection 454926-E	2	0.8 mm	0.031 in	Gold	Board Guide Pick and Place Solder Retention	8 mm	0.315 in	Surface Mount	16	Array Female Sockets
TE Connectivity Raychem Cable Protection 294259-E	2				Board Guide Solder Retention			Surface Mount Right Angle		Receptacle	80	Push-Pull	157.5 Áin	4 Ám	All	2.3 A	Solder	Tin	Black	Liquid Crystal Polymer (LCP)	Copper Alloy	Rectangular	Female Socket	-55 °C	125 °C	Gold	0.049 in	1.25 mm	0.173 in	4.4 mm	0.031 in	0.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

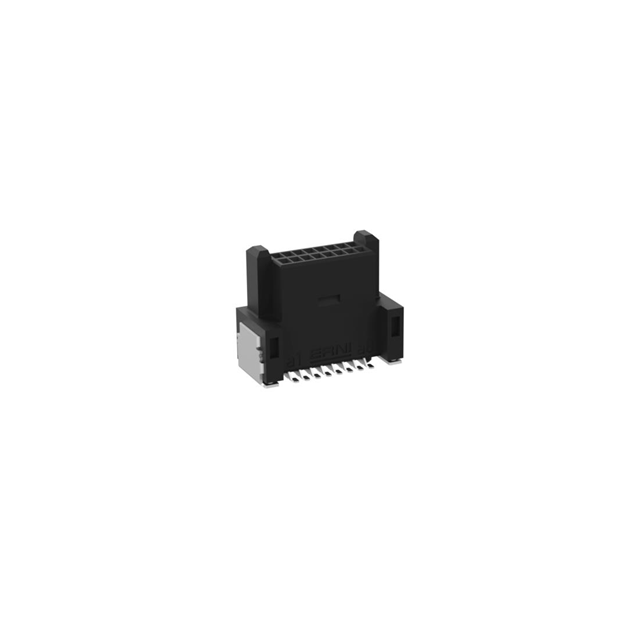

PCB Mount Receptacle, Vertical, Board-to-Board, 16 Position, .8 mm [.031 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI MicroCon
