E3532S.38.03

Active

Prysmian Group

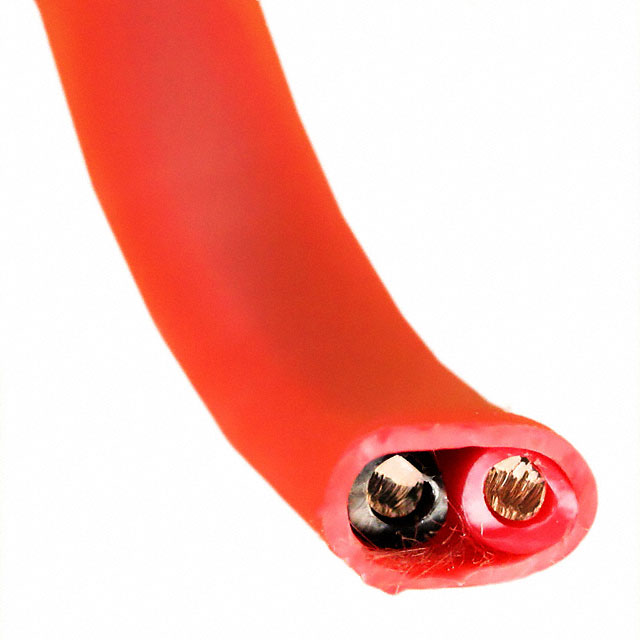

CABLE 2COND 12AWG RED 500'

E3532S.38.03

Active

Prysmian Group

CABLE 2COND 12AWG RED 500'

Description Specifications Series Pricing CAD Documents

Description

General part information

E3532S Series

2 Conductor Multi-Conductor Cable Red 12 AWG 500.0' (152.4m)

Technical Specifications

Parameters and characteristics for this part

Specification	E3532S.38.03

Cable Type	Conductor, Multi
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Annealed Bare, Copper
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter	0.244 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Red
Length	500 ft
Number of Conductors	2
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	0 °C
Ratings	B-3, ASTM
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	12 AWG

E3532S Series

Part	Wire Gauge	Jacket Color	Jacket (Insulation) Diameter	Conductor Insulation	Cable Type	Usage	Ratings	Length	Features	Conductor Strand	Voltage	Jacket (Insulation) Material	Operating Temperature (Max)	Number of Conductors	Jacket (Insulation) Thickness	Conductor Material
Prysmian Group E3532S.41.03	12 AWG	Red	0.244 in	Poly-Vinyl Chloride (PVC)	Conductor Multi	Alarm Safety	ASTM B-3	50 ft 100 ft 500 ft 1000 ft	Rip Cord	Solid	300 V	Plenum Poly-Vinyl Chloride (PVC)	75 °C	2	0.015 in	Annealed Bare Copper
Prysmian Group E3532S.38.03	12 AWG	Red	0.244 in	Poly-Vinyl Chloride (PVC)	Conductor Multi	Alarm Safety	ASTM B-3	500 ft	Rip Cord	Solid	300 V	Plenum Poly-Vinyl Chloride (PVC)	75 °C	2	0.015 in	Annealed Bare Copper
Prysmian Group E3532S.38.03	12 AWG	Red	0.244 in	Poly-Vinyl Chloride (PVC)	Conductor Multi	Alarm Safety	ASTM B-3	500 ft	Rip Cord	Solid	300 V	Plenum Poly-Vinyl Chloride (PVC)	75 °C	2	0.015 in	Annealed Bare Copper
Prysmian Group E3532S.41.03	12 AWG	Red	0.244 in	Poly-Vinyl Chloride (PVC)	Conductor Multi	Alarm Safety	ASTM B-3	50 ft 100 ft 500 ft 1000 ft	Rip Cord	Solid	300 V	Plenum Poly-Vinyl Chloride (PVC)	75 °C	2	0.015 in	Annealed Bare Copper
Prysmian Group E3532S.41.05	12 AWG	Yellow	0.244 in	Poly-Vinyl Chloride (PVC)	Conductor Multi		ASTM B-3	1000 ft	Rip Cord	Solid	300 V	Plenum Poly-Vinyl Chloride (PVC)	75 °C	2	0.015 in	Annealed Bare Copper
Prysmian Group E3532S.41.05	12 AWG	Yellow	0.244 in	Poly-Vinyl Chloride (PVC)	Conductor Multi		ASTM B-3	1000 ft	Rip Cord	Solid	300 V	Plenum Poly-Vinyl Chloride (PVC)	75 °C	2	0.015 in	Annealed Bare Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
