MS3122E-10-6P
ActiveAmphenol Industrial Operations

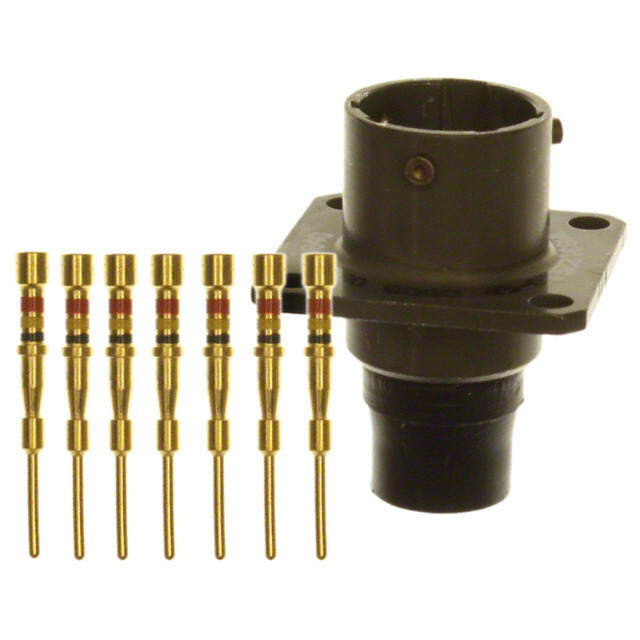

CONN RCPT MALE 6POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3122E-10-6P
ActiveAmphenol Industrial Operations
CONN RCPT MALE 6POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3122E-10-6P | MS3122E10 Series |
|---|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets, Receptacle, Male Pins, Receptacle Housing |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | - | Circular |
| Contact Size | - | 20 |
| Contact Type | - | Crimp |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Grade | Military | Military |
| Housing Color | - | Olive Drab |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Note | - | Contacts Not Included |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | W, N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium, Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 10-6 | 10-6 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Type | - | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 70.26 | |
| 10 | $ 64.47 | |||
| 100 | $ 56.62 | |||
MS3122E10 Series
CONN RCPT FMALE 6POS GOLD CRIMP
| Part | Applications | Primary Material | Shielding | Termination | Fastening Type | Qualification | Orientation | Ingress Protection | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Finish - Mating | Grade | Number of Positions | Shell Material | Shell Size - Insert | Shell Finish | Insert Material | Mounting Feature | Color | Contact Size | Contact Type | Note | Housing Color | Type | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3122E10-6SW | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Metal | Unshielded | Crimp | Bayonet Lock | MIL-DTL-26482 Series I | W | Environment Resistant | Copper Alloy | -55 °C | 125 °C | Receptacle, Female Sockets | Gold | Military | 6 | Aluminum | 10-6 | Olive Drab Chromate over Cadmium | Neoprene | Flange | Olive Drab | ||||||
Amphenol Industrial Operations MS3122E10-6PW | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Metal | Unshielded | Crimp | Bayonet Lock | MIL-DTL-26482 Series I | W | Environment Resistant | Copper Alloy | -55 °C | 125 °C | Male Pins, Receptacle | Gold | Military | 6 | Aluminum | 10-6 | Olive Drab Chromate over Cadmium | Neoprene | Flange | Olive Drab | ||||||
Amphenol Industrial Operations MS3122E10-6SLC | Unshielded | Bayonet Lock | MIL-DTL-26482 Series I | N | Environment Resistant | -55 °C | 125 °C | Receptacle Housing | Military | 6 | Aluminum | 10-6 | Chromate over Cadmium | Neoprene | Flange | 20 | Crimp | Contacts Not Included | Olive Drab | For Female Sockets | Circular | ||||||
Amphenol Industrial Operations MS3122E-10-6P | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Metal | Unshielded | Crimp | Bayonet Lock | MIL-DTL-26482 Series I | N | Environment Resistant | Copper Alloy | -55 °C | 125 °C | Male Pins, Receptacle | Gold | Military | 6 | Aluminum | 10-6 | Olive Drab Chromate over Cadmium | Neoprene | Flange | Olive Drab | ||||||
Amphenol Industrial Operations MS3122E10-6S | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Metal | Unshielded | Crimp | Bayonet Lock | MIL-DTL-26482 Series I | N | Environment Resistant | Copper Alloy | -55 °C | 125 °C | Receptacle, Female Sockets | Gold | Military | 6 | Aluminum | 10-6 | Olive Drab Chromate over Cadmium | Neoprene | Flange | Olive Drab |
Description
General part information
MS3122E10 Series
6 Position Circular Connector Receptacle, Male Pins Crimp
