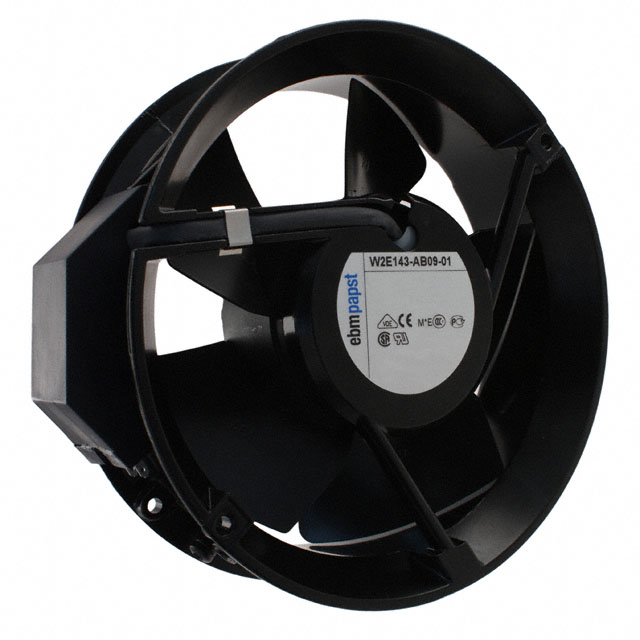

W2E143-AB09-01

Active

ebm-papst Inc.

AC FAN AXIAL BALL BEARING 230V 247.2CFM/294.3CFM 54DB/58DB 171.5 X 51MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Compact Fans for AC, DC, and EC Catalog +1

W2E143-AB09-01

Active

ebm-papst Inc.

AC FAN AXIAL BALL BEARING 230V 247.2CFM/294.3CFM 54DB/58DB 171.5 X 51MM

Deep-Dive with AI

DocumentsDatasheet Compact Fans for AC, DC, and EC Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W2E143-AB09-01

Air Flow	294.2 CFM
Air Flow	8.24 m³/min
Approval Agency	CE, CSA, VDE, GOST, CCC, UL
Bearing Type	Ball
Current Rating (Amps)	120 mA
Fan Type	Tubeaxial
Material - Blade	Steel
Material - Frame	Aluminum
Noise	58 dB(A)
Operating Temperature [Max]	80 °C
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	30 W
RPM	3300 RPM
Size / Dimension	Round
Size / Dimension [diameter]	171.5 mm
Termination	2 Terminals
Voltage - Rated	230 VAC
Weight	907.2 g
Weight	2 lbs
Width [y]	51 mm

W2E143 Series

Part	Fan Type	Voltage - Rated	Weight	Weight	Material - Frame	Material - Blade	RPM	Width [y]	Power (Watts)	Termination	Size / Dimension	Size / Dimension [diameter]	Approval Agency	Bearing Type	Current Rating (Amps)	Air Flow	Air Flow	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]
ebm-papst Inc. W2E143-AB15-06	Tubeaxial	115 VAC	907.2 g	2 lbs	Aluminum	Steel	3300 RPM	51 mm	29 W	2 Terminals	Round	171.5 mm	CE CSA UL VDE	Ball	0.26 A
ebm-papst Inc. W2E143-AA15-01	Tubeaxial	115 VAC	952.5 g	2.1 lb	Aluminum	Steel	3300 RPM	51 mm	26 W	2 Terminals	Round	171.5 mm	CCC CE CSA GOST UL VDE	Ball	0.23 A	7.25 mł/min	258.9 CFM	60 dB(A)	80 °C	-40 °C	-40 °C	80 C
ebm-papst Inc. W2E143-AB09-06	Tubeaxial	230 VAC	907.2 g	2 lbs	Aluminum	Steel	3300 RPM	51 mm	29 W		Round	171.5 mm	CCC CE CSA UL VDE	Ball					75 °C	-25 °C	-25 °C	75 ░C
ebm-papst Inc. W2E143-AB09-01	Tubeaxial	230 VAC	907.2 g	2 lbs	Aluminum	Steel	3300 RPM	51 mm	30 W	2 Terminals	Round	171.5 mm	CCC CE CSA GOST UL VDE	Ball	120 mA	8.24 m³/min	294.2 CFM	58 dB(A)	80 °C	-40 °C	-40 °C	80 C
ebm-papst Inc. W2E143-AA09-25	Tubeaxial	230 VAC	1 kg	2.3 lbs	Aluminum	Steel	3300 RPM	51 mm	26 W	2 Terminals	Round	171.5 mm	CE VDE	Ball	110 mA					-25 °C	-25 °C	70 °C	70 °C
ebm-papst Inc. W2E143-AA09-01	Tubeaxial	230 VAC	997.9 g	2.2 lbs	Aluminum	Steel	3300 RPM	51 mm	26 W	2 Terminals	Round	171.5 mm	CCC CE CSA GOST UL VDE	Ball		7.25 mł/min	258.9 CFM	60 dB(A)	80 °C	-40 °C	-40 °C	80 C
ebm-papst Inc. W2E143-AB15-01	Tubeaxial	115 VAC	952.5 g	2.1 lb	Aluminum	Steel	3300 RPM	51 mm	29 W	2 Terminals	Round	171.5 mm	CCC CE CSA GOST UL VDE	Ball	0.26 A	8.24 m³/min	294.2 CFM	58 dB(A)	80 °C	-40 °C	-40 °C	80 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 163.81
		10	$ 150.87
		25	$ 141.17
		50	$ 139.02

Description

General part information

W2E143 Series

Fan Tubeaxial 230VAC Round - 171.5mm Dia Ball 294.2 CFM (8.24m³/min) 2 Terminals
