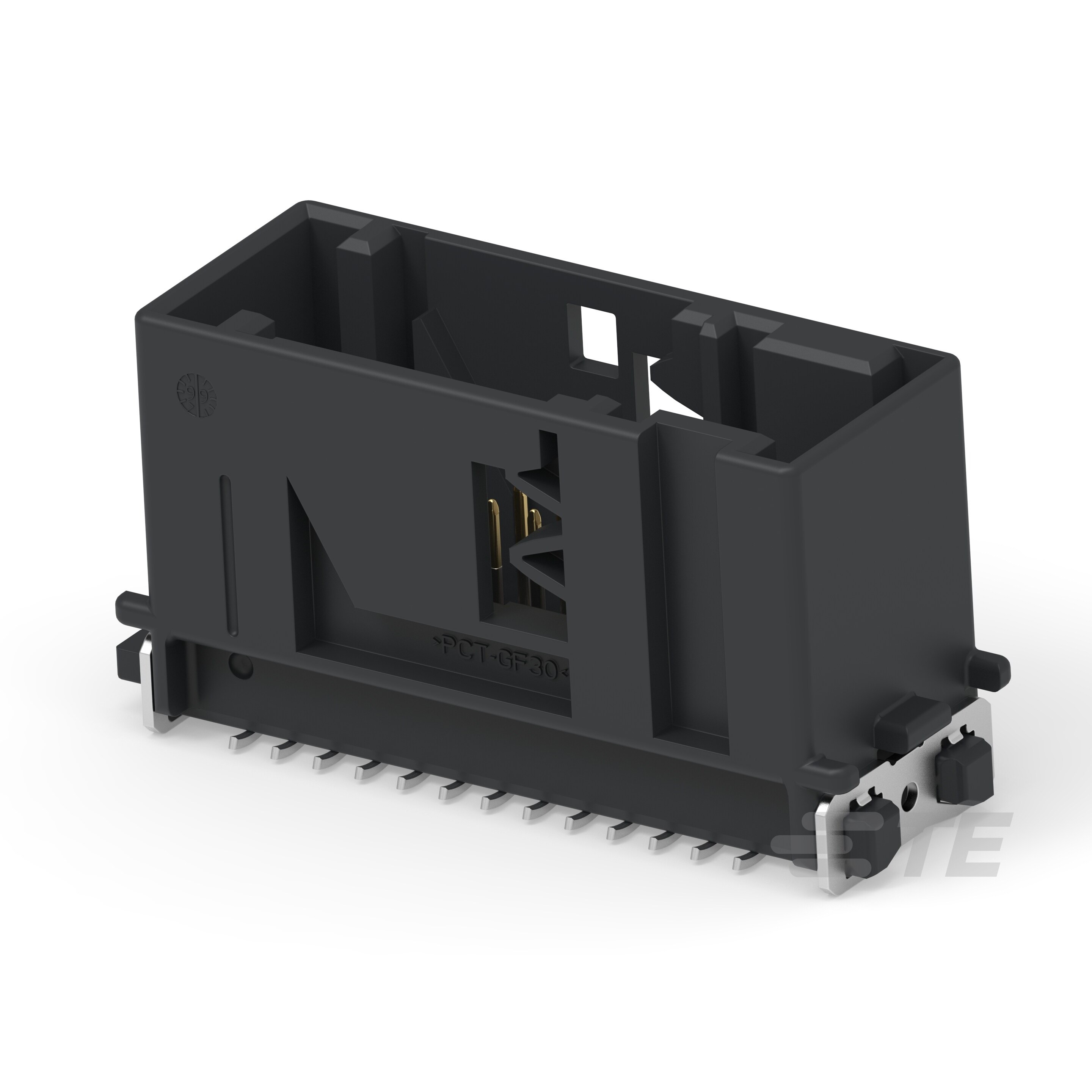

Specification	1-1924678-5

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Length - Mating	0.293 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Solder Retention
Insulation Color	Black
Insulation Height	0.943 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

Generation Y Connector System Series

Part	Color	Contact Termination	Number of Positions	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Pitch	Fastening Type	Number of Rows	Connector Type	Contact Type	Insulation Material	Features	Contact Finish - Post	Contact Finish - Mating	Contact Shape	Termination	Number of Positions Loaded	Shrouding	Contact Finish Thickness - Mating	Insulation Height	Insulation Color	Contact Material	Pitch - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Row Spacing
TE Connectivity AMP Connectors 2403333-1	Gray	Crimp	68	Free Hanging (In-Line)	125 °C	-40 °C	0.1 in	Lever Lock	6	Receptacle	Female Socket	Glass Filled Nylon Polyamide (PA)	Connector Position Assurance (CPA)
TE Connectivity AMP Connectors 2035239-1			54	Surface Mount				Latch Holder	3	Header	Male Pin	Polycyclohexylenedimethylene Terephthalate (PCT)	Board Guide Solder Retention	Tin	Tin	Square	Solder	All	Shrouded - 4 Wall	31.5 µin	1.035 in	Black	Brass
TE Connectivity AMP Connectors 1438543-1			18	Surface Mount				Push-Pull	2	Header	Male Pin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT)	Solder Retention	Tin	Tin	Square	Solder	All	Shrouded - 4 Wall	31.5 µin	0.943 in	Black	Brass	0.1 in	0.1 in	0.293 in	31.5 µin
TE Connectivity AMP Connectors 2344715-8	Black	Crimp	90	Free Hanging (In-Line)	105 °C	-40 °C	0.1 in	Push-Pull	4	Receptacle	Female Socket	Glass Filled Polybutylene Terephthalate (PBT)	Sealed															0.179 in
TE Connectivity AMP Connectors 2377656-1	Black	Crimp	68	Free Hanging (In-Line)	125 °C	-40 °C	0.1 in	Lever Lock	6	Receptacle	Female Socket	Nylon Polyamide (PA)	Connector Position Assurance (CPA)
TE Connectivity AMP Connectors 2316171-3	Gray	Crimp	4	Free Hanging (In-Line)	130 °C	-40 °C		Locking Ramp	2	Receptacle	Female Socket	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 2377654-1	Gray	Crimp	68	Free Hanging (In-Line)	105 °C	-40 °C	0.1 in	Lever Lock	6	Receptacle	Female Socket	Nylon Polyamide (PA)	Connector Position Assurance (CPA)
TE Connectivity AMP Connectors 2344717-2
TE Connectivity AMP Connectors 2386146-6	Natural	Crimp	2	Free Hanging (In-Line)	100 °C	-40 °C	0.1 in	Latch Lock	1	Receptacle	Female Socket	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 2344718-2	Black	Crimp	16	Free Hanging (In-Line)	130 °C	-40 °C	0.138 in	Lever Lock	3	Plug	Female Socket	Glass Filled Polybutylene Terephthalate (PBT)	Sealed															0.179 in
