73S1209F-44IMR/F
ActiveAnalog Devices Inc./Maxim Integrated

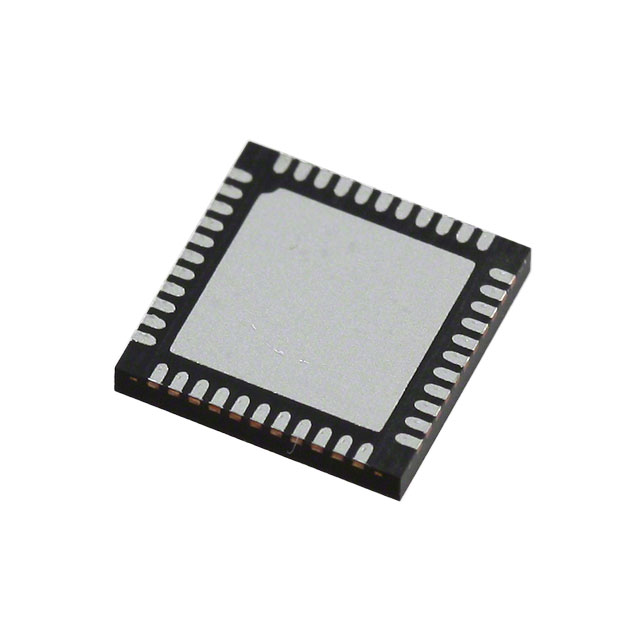

IC MCU 8BIT 32KB FLASH 44QFN
Deep-Dive with AI
Search across all available documentation for this part.
73S1209F-44IMR/F
ActiveAnalog Devices Inc./Maxim Integrated
IC MCU 8BIT 32KB FLASH 44QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 73S1209F-44IMR/F | 73S1209F Series |
|---|---|---|
| Connectivity | SmartCard, I2C, UART/USART | SmartCard, I2C, UART/USART |
| Core Processor | 80515 | 80515 |
| Core Size | 8-Bit | 8-Bit |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 9 I/O | 9 I/O |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 44-VFQFN Exposed Pad | 44-VFQFN Exposed Pad |
| Peripherals | LED, WDT, POR | LED, WDT, POR |
| Program Memory Size | 32 KB | 32 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 2K x 8 | 2K x 8 |
| Speed | 24 MHz | 24 MHz |
| Supplier Device Package | 44-QFN, 7x7 | 44-QFN, 7x7 |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
73S1209F Series
IC MCU 8BIT 32KB FLASH 44QFN
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Program Memory Type | Speed | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | RAM Size | Supplier Device Package | Package / Case | Connectivity | Core Size | Oscillator Type | Number of I/O | Core Processor | Peripherals | Program Memory Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated 73S1209F-44IMR/F | Surface Mount | 85 °C | -40 °C | FLASH | 24 MHz | 2.7 V | 5.5 V | 2K x 8 | 44-QFN, 7x7 | 44-VFQFN Exposed Pad | I2C, SmartCard, UART/USART | 8-Bit | Internal | 9 I/O | 80515 | LED, POR, WDT | 32 KB |
Analog Devices Inc./Maxim Integrated 73S1209F-44M/F/PD | Surface Mount | 85 °C | -40 °C | FLASH | 24 MHz | 2.7 V | 5.5 V | 2K x 8 | 44-QFN, 7x7 | 44-VFQFN Exposed Pad | I2C, SmartCard, UART/USART | 8-Bit | Internal | 9 I/O | 80515 | LED, POR, WDT | 32 KB |
Analog Devices Inc./Maxim Integrated 73S1209F-44IM/F | Surface Mount | 85 °C | -40 °C | FLASH | 24 MHz | 2.7 V | 5.5 V | 2K x 8 | 44-QFN, 7x7 | 44-VFQFN Exposed Pad | I2C, SmartCard, UART/USART | 8-Bit | Internal | 9 I/O | 80515 | LED, POR, WDT | 32 KB |
Description
General part information
73S1209F Series
80515 73S12xx Microcontroller IC 8-Bit 24MHz 32KB (32K x 8) FLASH 44-QFN (7x7)
