11-14S

Active

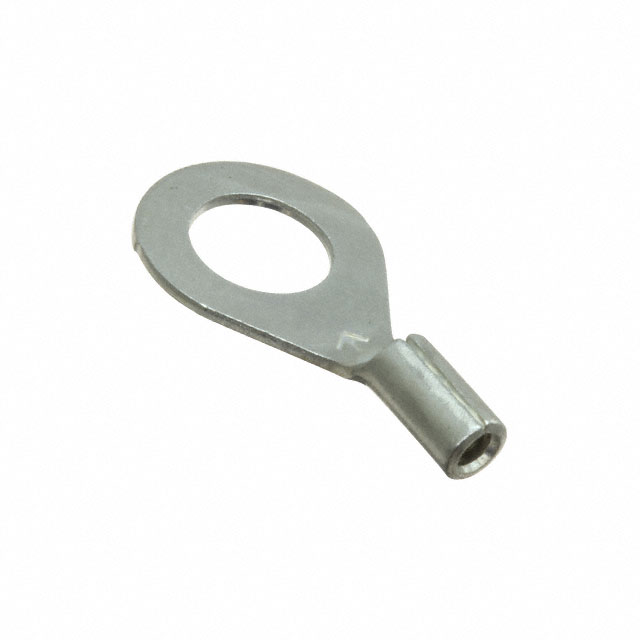

CONN RING CIRC 18-22AWG #1/4

Search across all available documentation for this part.

Active

CONN RING CIRC 18-22AWG #1/4

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RING CIRC 18-22AWG #1/4

Part	Length - Overall [x]	Length - Overall [x]	Contact Finish	Contact Material	Stud/Tab Size	Insulation	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Features	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Terminal Type	Termination
3M 11-14S	0.88 in	22.35 mm	Tin	Copper, ETP	0.25 Stud	Non-Insulated	Free Hanging (In-Line)	22 AWG	17.5 AWG	Butted Seam	0.03 in	0.76 mm	0.47 in	11.94 mm	Circular	Crimp
3M 11-14S-W	0.88 in	22.35 mm	Tin	Copper	0.25 Stud	Non-Insulated	Free Hanging (In-Line)	22 AWG	17.5 AWG	Brazed Seam	0.03 in	0.76 mm	0.47 in	11.94 mm	Circular	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 1/4 Stud Circular 18-22 AWG Crimp
