1067-2-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.

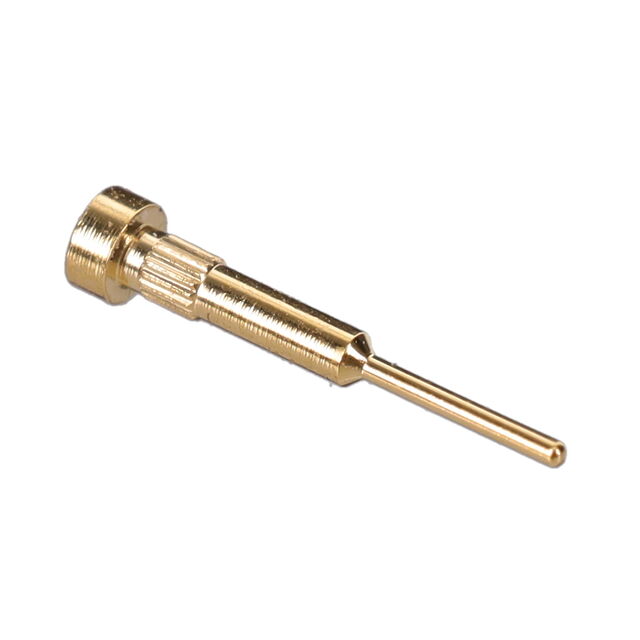

CONN PC PIN CIRC 0.018DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
1067-2-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.018DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1067-2-00-21-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange [custom] | 0.34 " |
| Length - Above Flange [custom] | 8.64 mm |
| Length - Overall | 9.42 mm |
| Length - Overall | 0.371 in |
| Mounting Hole Diameter [diameter] | 0.042 in |
| Mounting Hole Diameter [diameter] | 1.07 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.46 mm |
| Pin Size - Above Flange [diameter] | 0.018 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.02 | |
| 10 | $ 0.86 | |||
| 25 | $ 0.83 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.70 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.56 | |||
| 3000 | $ 0.51 | |||
Description
General part information
1067-2 Series
PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia
