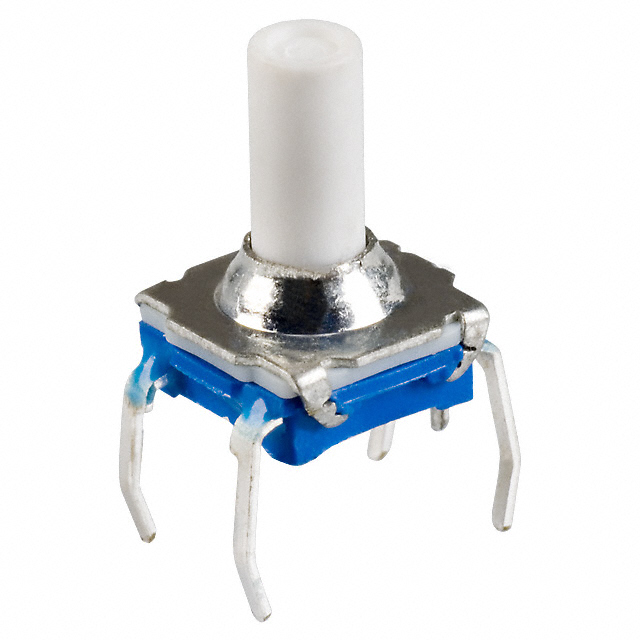

GSE10.00F130QP

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	GSE10.00F130QP

Actuator Height off PCB, Vertical [z]	10 mm
Actuator Material	Liquid Crystal Polymer (LCP)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Features	Grounding Pin
Illumination	Non-Illuminated
Mechanical Life	400000 Cycles
Mounting Type	Through Hole
Operating Force	130 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	7.2 mm
Outline [y]	7.2 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Actuator Height off PCB, Vertical [z]	Mechanical Life	Actuator Type	Mounting Type	Outline [x]	Outline [y]	Switch Travel [custom]	Contact Rating @ Voltage	Termination Style	Circuit	Illumination	Features	Operating Force	Switch Function
E-Switch GSE10.00F130QP	Top Actuated	85 °C	-40 °C	Liquid Crystal Polymer (LCP)	10 mm	400000 Cycles	Standard	Through Hole	7.2 mm	7.2 mm	0.3 mm	0.05 A 50 VDC	PC Pin	SPST-NO	Non-Illuminated	Grounding Pin	130 gf	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
