572-002-000-200

Active

EDAC Inc.

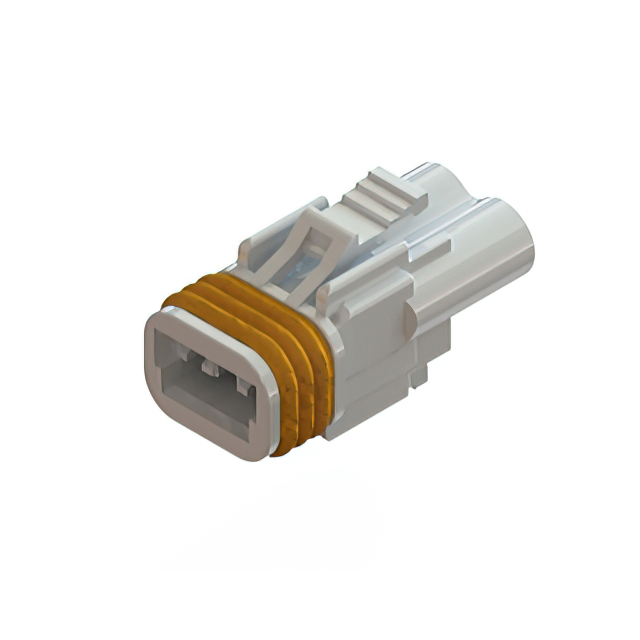

CONN RCPT HSG 2POS 5.80MM

Search across all available documentation for this part.

Active

EDAC Inc.

CONN RCPT HSG 2POS 5.80MM

Technical Specifications

Parameters and characteristics for this part

Specification	572-002-000-200

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Waterproof
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.228 in
Pitch [x]	5.8 mm

Part	Material Flammability Rating	Contact Finish - Post	Number of Positions	Style	Number of Positions Loaded	Contact Type	Insulation Height	Insulation Height	Contact Shape	Mounting Type	Connector Type	Insulation Color	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Rows	Shrouding	Termination	Fastening Type	Contact Material	Applications	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Color	Note	Features	Pitch [x]	Pitch [x]	Contact Termination
EDAC Inc. 572-002-420-301	UL94 V-0	Tin	2	Board to Cable/Wire	All	Male Pin	0.768 "	19.5 mm	Circular	Through Hole	Header	Blue	10 A	5.8 mm	0.228 in	Polybutylene Terephthalate (PBT) Glass Filled	1	Shrouded - 4 Wall	Solder	Latch Holder	Brass	Automotive General Purpose	IP67	-40 °C	105 ░C
EDAC Inc. 572-002-000-200			2			Female Socket				Free Hanging (In-Line)	Receptacle					Polybutylene Terephthalate (PBT)	1			Latch Lock				-40 °C	105 ░C	White	Contacts Not Included	Waterproof	0.228 in	5.8 mm	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle White 0.228" (5.80mm)
