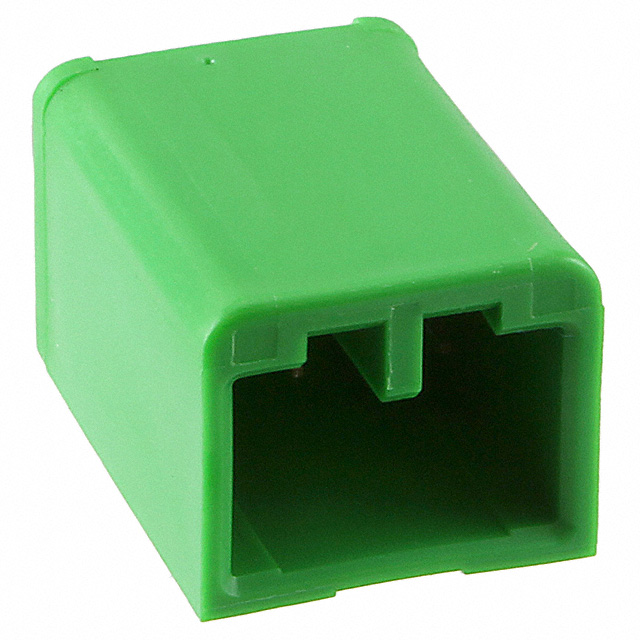

IL-AG5-4P-S3T2

Active

JAE Electronics

CONN HEADER VERT 4POS 2.5MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER VERT 4POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	IL-AG5-4P-S3T2

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	8.4 mm
Contact Length - Mating	0.331 in
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Green
Insulation Height	18.2 mm
Insulation Height	0.717 in
Insulation Material	Polybutylene Terephthalate (PBT)
Mated Stacking Heights	28.2 mm
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Contact Length [x]	3.5 mm
Overall Contact Length [x]	0.138 in
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Style	Overall Contact Length [x]	Overall Contact Length [x]	Fastening Type	Insulation Height	Insulation Height	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Material	Insulation Color	Contact Shape	Termination	Contact Length - Mating	Contact Length - Mating	Contact Material	Connector Type	Contact Finish - Post	Mounting Type	Applications	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Type	Number of Rows	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Features
JAE Electronics IL-AG5-4P-S3T2	Board to Cable/Wire	3.5 mm	0.138 in	Push-Pull	18.2 mm	0.717 in	28.2 mm	2.5 mm	0.098 in	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Green	Square	Solder	8.4 mm	0.331 in	Brass	Header	Tin	Through Hole	Automotive	3.5 mm	0.138 in	4	Male Pin	1	All	85 °C	-40 °C	3 A
JAE Electronics IL-AG5-4P-S3L2	Board to Cable/Wire			Push-Pull	11 mm	0.433 in		2.5 mm	0.098 in	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Green	Square	Solder	8.4 mm	0.331 in	Brass	Header	Tin	Through Hole Right Angle	Automotive	3.5 mm	0.138 in	4	Male Pin	1	All	85 °C	-40 °C	3 A	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.098" (2.50mm)
