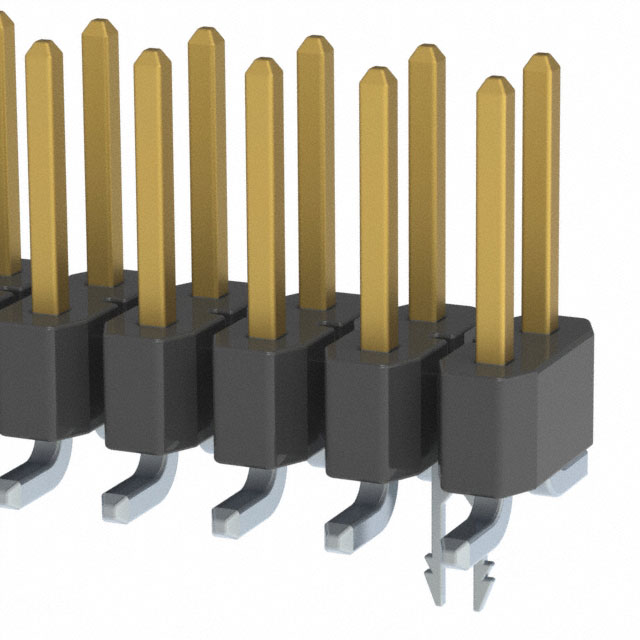

TSM-116-01-S-DV-LC-P

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 32 POS 2.54MM SOLDER ST TOP ENTRY SMD TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSM-116-01-S-DV-LC-P

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 32 POS 2.54MM SOLDER ST TOP ENTRY SMD TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-116-01-S-DV-LC-P

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Board Lock
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-116 Series

...

Part	Number of Positions Loaded	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Connector Type	Material Flammability Rating	Features	Number of Rows	Contact Type	Contact Finish - Post	Mounting Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Length - Mating [x]	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Style	Contact Material	Contact Shape	Shrouding	Insulation Height	Insulation Height	Contact Length - Mating	Number of Positions
Samtec Inc. TSM-116-01-L-DV-P-TR	All	Gold	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Cuttable Header	UL94 V-0	Pick and Place	2	Male Pin	Tin	Surface Mount	Push-Pull	-55 °C	125 °C	10 çin	0.25 çm	Solder	0.23 in	5.84 mm	2.54 mm	0.1 in	Black	Board to Board Cable	Phosphor Bronze	Square	Unshrouded	0.1 in	2.54 mm
Samtec Inc. TSM-116-03-L-DV-LC	All	Gold	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Cuttable Header	UL94 V-0		2	Male Pin	Tin	Surface Mount	Push-Pull	-55 °C	125 °C	10 çin	0.25 çm	Solder		10.67 mm	2.54 mm	0.1 in	Black	Board to Board Cable	Phosphor Bronze	Square	Unshrouded	0.1 in	2.54 mm	0.42 in
Samtec Inc. TSM-116-03-TM-DV-TR	All		0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Cuttable Header	UL94 V-0		2	Male Pin	Tin	Surface Mount	Push-Pull	-55 °C	105 ░C			Solder		10.67 mm	2.54 mm	0.1 in	Black	Board to Board Cable	Phosphor Bronze	Square	Unshrouded	0.1 in	2.54 mm	0.42 in
Samtec Inc. TSM-116-03-S-SH	All	Gold	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Header	UL94 V-0		1	Male Pin	Tin	Surface Mount Right Angle	Push-Pull	-55 °C	125 °C	30 Áin	0.76 Ám	Solder		10.67 mm			Black	Board to Board Cable	Phosphor Bronze	Square	Unshrouded	0.12 in	3.05 mm	0.42 in	16
Samtec Inc. TSM-116-01-T-SV-A-TR	All		0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Cuttable Header	UL94 V-0	Board Guide	1	Male Pin	Tin	Surface Mount	Push-Pull	-55 °C	105 ░C			Solder	0.23 in	5.84 mm			Black	Board to Board Cable	Phosphor Bronze	Square	Unshrouded	0.1 in	2.54 mm		16
Samtec Inc. TSM-116-01-S-DV-LC-P	All	Gold	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Cuttable Header	UL94 V-0	Board Lock Pick and Place	2	Male Pin	Tin	Surface Mount	Push-Pull	-55 °C	125 °C	30 Áin	0.76 Ám	Solder	0.23 in	5.84 mm	2.54 mm	0.1 in	Black	Board to Board Cable	Phosphor Bronze	Square	Unshrouded	0.1 in	2.54 mm
Samtec Inc. TSM-116-01-L-DH-A	All	Gold	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Header	UL94 V-0	Board Guide	2	Male Pin	Tin	Surface Mount Right Angle	Push-Pull	-55 °C	125 °C	10 çin	0.25 çm	Solder	0.23 in	5.84 mm	2.54 mm	0.1 in	Black	Board to Board Cable	Phosphor Bronze	Square	Unshrouded	0.24 in	6.1 mm
Samtec Inc. TSM-116-02-F-DV-P-TR	All	Gold	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Cuttable Header	UL94 V-0	Pick and Place	2	Male Pin	Tin	Surface Mount	Push-Pull	-55 °C	125 °C	3 µin	0.076 µm	Solder		8.13 mm	2.54 mm	0.1 in	Black	Board to Board Cable	Phosphor Bronze	Square	Unshrouded	0.1 in	2.54 mm	0.32 in
Samtec Inc. TSM-116-02-LM-DV-P-TR	All	Gold	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Cuttable Header	UL94 V-0	Pick and Place	2	Male Pin	Tin	Surface Mount	Push-Pull	-55 °C	125 °C	10 çin	0.25 çm	Solder		8.13 mm	2.54 mm	0.1 in	Black	Board to Board Cable	Phosphor Bronze	Square	Unshrouded	0.1 in	2.54 mm	0.32 in
Samtec Inc. TSM-116-02-F-DH-A	All	Gold	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Header	UL94 V-0	Board Guide	2	Male Pin	Tin	Surface Mount Right Angle	Push-Pull	-55 °C	125 °C	3 µin	0.076 µm	Solder		8.13 mm	2.54 mm	0.1 in	Black	Board to Board Cable	Phosphor Bronze	Square	Unshrouded	0.24 in	6.1 mm	0.32 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 5.87
		25	$ 5.65
		50	$ 5.47
		100	$ 5.21
Digikey	Tube	14	$ 5.87

Description

General part information

TSM-116 Series

Connector Header Surface Mount 32 position 0.100" (2.54mm)

Documents

Technical documentation and resources
