Q-1Y0290013006i

Active

Amphenol Custom Cable

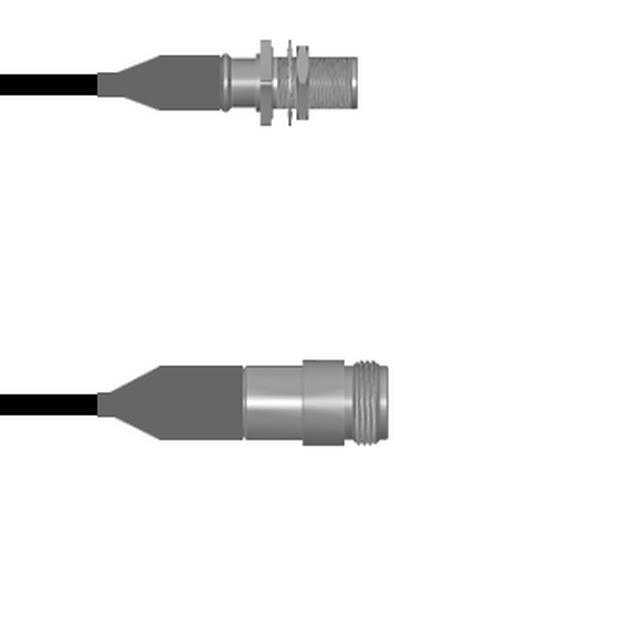

CBL ASSY NTYPE JACK TO JACK 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1Y0290013006i

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO JACK 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Y0290013006i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-1Y0290 Series

Part	1st Contact Gender	Overall Impedance	2nd Connector Mounting Type	1st Connector Mounting Feature	Frequency - Max [Max]	2nd Connector	Color	Cable Type	1st Connector Mounting Type	1st Connector	Style	Length	Length	Features	2nd Contact Gender	Length
Amphenol Custom Cable Q-1Y0290013009i	Female	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	6000 MHz	N-Type Jack	Black	LMR 400	Panel Mount	N-Type Jack	N-Type to N-Type	9 "	228.6 mm	Shielded	Female
Amphenol Custom Cable Q-1Y0290013060i	Female	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	6000 MHz	N-Type Jack	Black	LMR 400	Panel Mount	N-Type Jack	N-Type to N-Type	5 '	1.5 m	Shielded	Female	5 ft
Amphenol Custom Cable Q-1Y0290013036i	Female	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	6000 MHz	N-Type Jack	Black	LMR 400	Panel Mount	N-Type Jack	N-Type to N-Type	36 in	91.44 cm	Shielded	Female
Amphenol Custom Cable Q-1Y0290013001M	Female	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	6000 MHz	N-Type Jack	Black	LMR 400	Panel Mount	N-Type Jack	N-Type to N-Type	39.4 in	1 m	Shielded	Female	3.3 ft
Amphenol Custom Cable Q-1Y0290013012i	Female	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	6000 MHz	N-Type Jack	Black	LMR 400	Panel Mount	N-Type Jack	N-Type to N-Type	12 "	304.8 mm	Shielded	Female
Amphenol Custom Cable Q-1Y0290013003i	Female	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	6000 MHz	N-Type Jack	Black	LMR 400	Panel Mount	N-Type Jack	N-Type to N-Type	3 in	76.2 mm	Shielded	Female
Amphenol Custom Cable Q-1Y0290013006i	Female	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	6000 MHz	N-Type Jack	Black	LMR 400	Panel Mount	N-Type Jack	N-Type to N-Type	6 in	152.4 mm	Shielded	Female
Amphenol Custom Cable Q-1Y02900131.5M	Female	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	6000 MHz	N-Type Jack	Black	LMR 400	Panel Mount	N-Type Jack	N-Type to N-Type	59.1 in	1.5 m	Shielded	Female	4.9 ft
Amphenol Custom Cable Q-1Y0290013048i	Female	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	6000 MHz	N-Type Jack	Black	LMR 400	Panel Mount	N-Type Jack	N-Type to N-Type	48 in	1200 mm	Shielded	Female	4 ft
Amphenol Custom Cable Q-1Y02900130.5M	Female	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	6000 MHz	N-Type Jack	Black	LMR 400	Panel Mount	N-Type Jack	N-Type to N-Type	19.69 "	50 cm	Shielded	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 192.07
		25	$ 188.48
		50	$ 184.89
		100	$ 181.30
		250	$ 177.71

Description

General part information

Q-1Y0290 Series

Cable Assembly Coaxial N-Type to N-Type LMR 400 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
