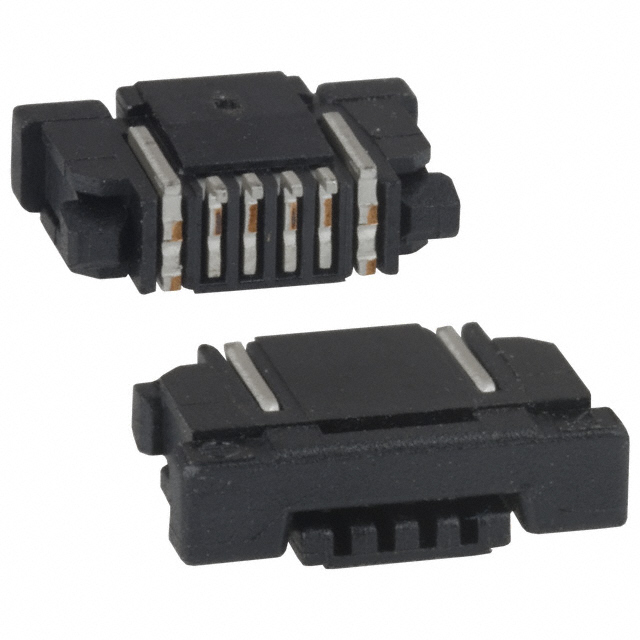

SFR4R-1STE1LF

Obsolete

Amphenol ICC (FCI)

CONN FFC BOTTOM 4POS 0.8MM R/A

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN FFC BOTTOM 4POS 0.8MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	SFR4R-1STE1LF

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.098 in
Height Above Board	2.5 mm
Housing Color	Black
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Termination	Solder

Part	Housing Material	Locking Feature	Actuator Material	Flat Flex Type	Housing Color	Connector/Contact Type	FFC, FCB Thickness [z]	Termination	Material Flammability Rating	Contact Finish	Mounting Type	Height Above Board	Height Above Board	Actuator Color	Contact Material	Pitch [x]	Pitch [x]	Number of Positions	Cable End Type
Amphenol ICC (FCI) SFR4R-1STE1LF	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	FFC FPC	Black	Contacts Bottom	0.3 mm 0.33 mm	Solder	UL94 V-0	Tin	Surface Mount Right Angle	0.098 in	2.5 mm	Black	Phosphor Bronze	0.8 mm	0.031 in	4	Straight Tapered

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position FFC, FPC Connector Contacts, Bottom 0.031" (0.80mm) Surface Mount, Right Angle
