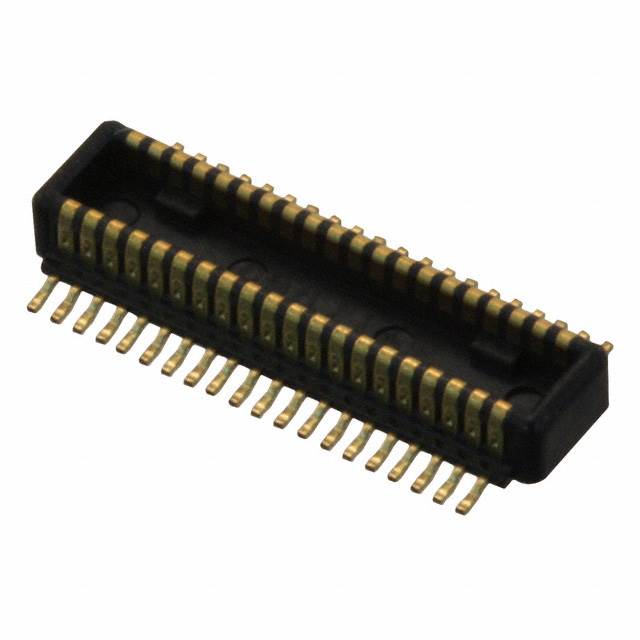

AXK840145WG

Active

Panasonic Electric Works

CONN HDR 40POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK840145WG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.052 in
Height Above Board	1.32 mm
Mated Stacking Heights	1.5 mm, 2 mm, 2.5 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Connector Type	Mounting Type	Contact Finish	Mated Stacking Heights
Panasonic Electric Works AXK840145WG	0.016 in	0.4 mm	2	40	0.052 in	1.32 mm	Header Outer Shroud Contacts	Surface Mount	Gold	1.5 mm 2 mm 2.5 mm
Panasonic Electric Works AXK840145WA	0.016 in	0.4 mm	2	40	0.052 in	1.32 mm	Header Outer Shroud Contacts	Surface Mount	Gold	1.5 mm 2 mm 2.5 mm
