342-045-558-103
ActiveEDAC Inc.

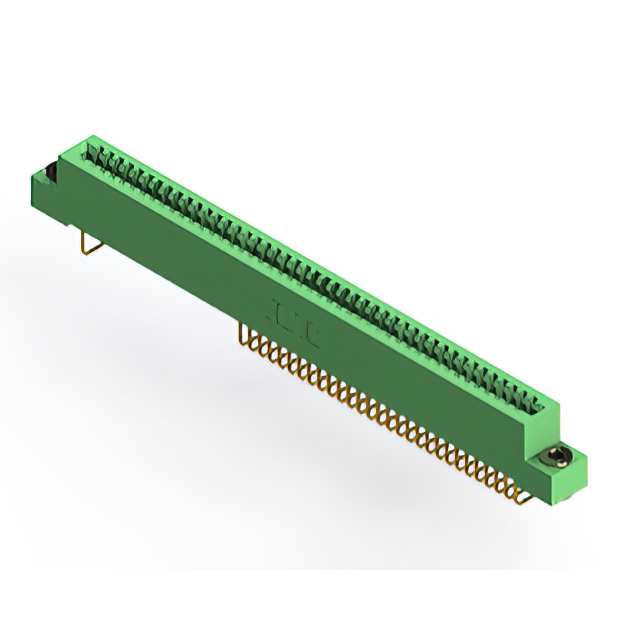

CONN EDGE SINGLE FML 45POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-045-558-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 45POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-045-558-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 45 |
| Number of Positions/Bay/Row [custom] | 45 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap, Solder |
| Termination Rows | 1 |
342-045 Series
| Part | Gender | Read Out | Card Type | Number of Positions/Bay/Row [custom] | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Contact Finish | Termination | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Type | Number of Positions | Color | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Single | Non Specified - Single Edge | 45 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 1 | Cantilever | 45 | Green | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 1 | ||
EDAC Inc. | Female | Single | Non Specified - Single Edge | 45 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Solder | Flush Mount Side Opening Unthreaded | -40 °C | 105 ░C | 1 | Cantilever | 45 | Green | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 1 | 3.25 mm | 0.128 " |
EDAC Inc. | Female | Single | Non Specified - Single Edge | 45 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Wire Wrap | Flush Mount Side Opening Unthreaded | -40 °C | 105 ░C | 1 | Cantilever | 45 | Green | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 1 | 3.25 mm | 0.128 " |
EDAC Inc. | Female | Single | Non Specified - Single Edge | 45 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Solder | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 1 | Cantilever | 45 | Green | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 1 | ||
EDAC Inc. | Female | Single | Non Specified - Single Edge | 45 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Solder Wire Wrap | Floating Bobbin Flush Mount | -40 °C | 105 ░C | 1 | Cantilever | 45 | Green | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 1 | 2.95 mm | 0.116 in |
EDAC Inc. | Female | Single | Non Specified - Single Edge | 45 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Solder | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 1 | Cantilever | 45 | Green | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 1 | 3.25 mm | 0.128 " |
EDAC Inc. | Female | Single | Non Specified - Single Edge | 45 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Wire Wrap | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 1 | Cantilever | 45 | Green | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 1 | 3.96 mm | 0.156 in |
EDAC Inc. | Female | Single | Non Specified - Single Edge | 45 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Wire Wrap | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 1 | Cantilever | 45 | Green | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 1 | 3.25 mm | 0.128 " |
EDAC Inc. | Female | Single | Non Specified - Single Edge | 45 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Wire Wrap | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 1 | Cantilever | 45 | Green | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 1 | 3.96 mm | 0.156 in |
EDAC Inc. | Female | Single | Non Specified - Single Edge | 45 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Solder | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 1 | Cantilever | 45 | Green | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 1 | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 24.31 | |
Description
General part information
342-045 Series
45 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
