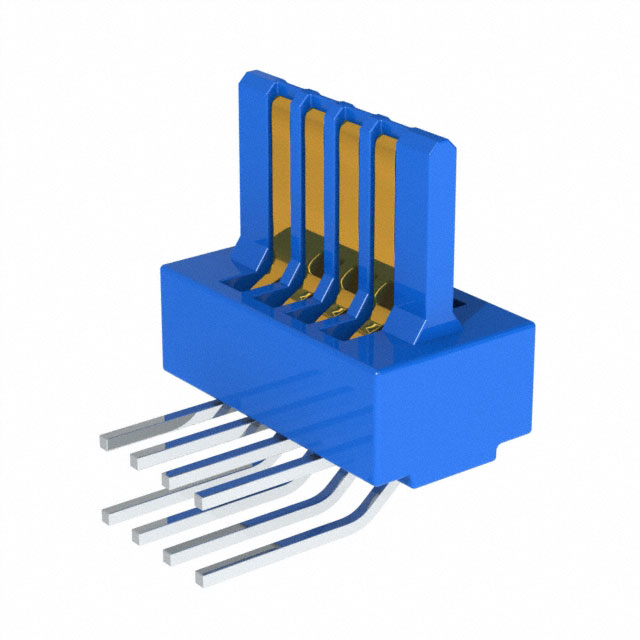

Specification	ECC04MMDN

Card Thickness	0.062 in
Card Type	Fits Female Edgecards
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Phosphor Bronze
Gender	Male
Material - Insulation	PBT, Polybutylene Terephthalate
Mounting Type	Through Hole, Right Angle
Number of Positions	4, 8
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder

ECC04 Series

Part	Material - Insulation	Number of Positions	Card Thickness	Pitch	Mounting Type	Read Out	Contact Material	Contact Finish	Termination	Contact Finish Thickness	Number of Rows	Gender	Card Type	Operating Temperature (Max)	Operating Temperature (Min)	Flange Feature Diameter	Flange Feature	Features
Sullins Connector Solutions ECC04MMSN	PBT Polybutylene Terephthalate	4 8	0.062 in	0.1 in	Through Hole	Dual	Phosphor Bronze	Gold	Solder	30 µin	2	Male	Fits Female Edgecards	125 °C	-65 °C
Sullins Connector Solutions ECC04MMDD	PBT Polybutylene Terephthalate	4 8	0.062 in	0.1 in	Right Angle Through Hole	Dual	Phosphor Bronze	Gold	Solder	30 µin	2	Male	Fits Female Edgecards	125 °C	-65 °C	0.125 in	Flush Mount Top Opening Unthreaded
Sullins Connector Solutions ECC04MMMN	PBT Polybutylene Terephthalate	4 8	0.062 in	0.1 in	Through Hole	Dual	Phosphor Bronze	Gold	Wire Wrap	30 µin	2	Male	Fits Female Edgecards	125 °C	-65 °C
Sullins Connector Solutions ECC04MMVD-S189	PBT Polybutylene Terephthalate	4 8	0.062 in	0.1 in	Right Angle Through Hole	Dual	Phosphor Bronze	Gold	Solder	30 µin	2	Male	Fits Female Edgecards	125 °C	-65 °C	0.125 in	Flush Mount Top Opening Unthreaded
Sullins Connector Solutions ECC04MMDN	PBT Polybutylene Terephthalate	4 8	0.062 in	0.1 in	Right Angle Through Hole	Dual	Phosphor Bronze	Gold	Solder	30 µin	2	Male	Fits Female Edgecards	125 °C	-65 °C
Sullins Connector Solutions ECC04MMND	PBT Polybutylene Terephthalate	4 8	0.062 in	0.1 in	Board Edge Straddle Mount	Dual	Phosphor Bronze	Gold	Solder	30 µin	2	Male	Fits Female Edgecards	125 °C	-65 °C	0.125 in	Flush Mount Top Opening Unthreaded	Card Extender
Sullins Connector Solutions ECC04MMNN	PBT Polybutylene Terephthalate	4 8	0.062 in	0.1 in	Board Edge Straddle Mount	Dual	Phosphor Bronze	Gold	Solder	30 µin	2	Male	Fits Female Edgecards	125 °C	-65 °C			Card Extender
Sullins Connector Solutions ECC04MMMD	PBT Polybutylene Terephthalate	4 8	0.062 in	0.1 in	Through Hole	Dual	Phosphor Bronze	Gold	Wire Wrap	30 µin	2	Male	Fits Female Edgecards	125 °C	-65 °C	0.125 in	Flush Mount Top Opening Unthreaded
Sullins Connector Solutions ECC04MMRN	PBT Polybutylene Terephthalate	4 8	0.062 in	0.1 in	Board Edge Straddle Mount	Dual	Phosphor Bronze	Gold	Solder	30 µin	2	Male	Fits Female Edgecards	125 °C	-65 °C			Card Extender
Sullins Connector Solutions ECC04MMRD	PBT Polybutylene Terephthalate	4 8	0.062 in	0.1 in	Board Edge Straddle Mount	Dual	Phosphor Bronze	Gold	Solder	30 µin	2	Male	Fits Female Edgecards	125 °C	-65 °C	0.125 in	Flush Mount Top Opening Unthreaded	Card Extender
