SDL-104-T-12

Unknown

Samtec Inc.

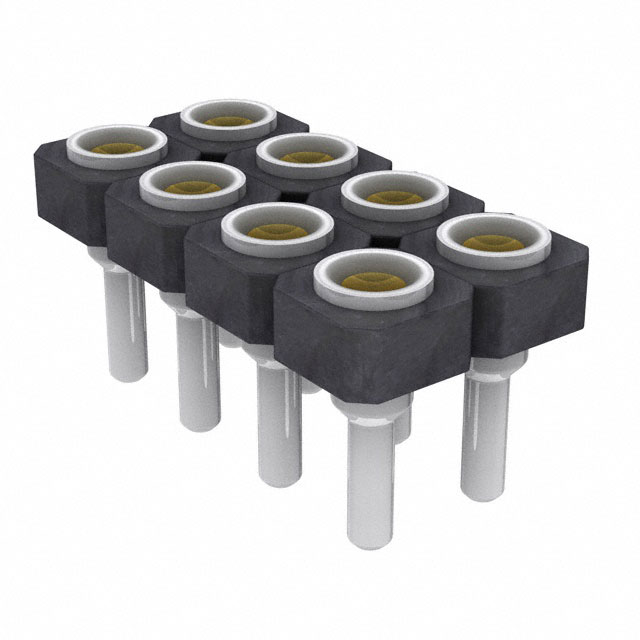

CONN RCPT 8POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDL-104-T-12

Unknown

Samtec Inc.

CONN RCPT 8POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDL-104-T-12

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post [x]	2.41 mm
Contact Length - Post [x]	0.095 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.095 in
Insulation Height [z]	2.41 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

SDL-104 Series

Part	Termination	Number of Rows	Contact Material	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Material	Connector Type	Contact Type	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Number of Positions	Number of Positions Loaded	Fastening Type	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post
Samtec Inc. SDL-104-G-19	Solder	2	Beryllium Copper	Gold	2.54 mm	0.1 in	Circular	Through Hole	10 çin	0.25 çm	-55 °C	125 °C	Black	Liquid Crystal Polymer (LCP)	Receptacle	Female Socket	Gold	2.08 mm	0.082 "	0.1 in	2.54 mm	30 Áin	0.76 Ám	2.1 mm	0.083 "	8	All	Push-Pull
Samtec Inc. SDL-104-T-12	Solder	2	Beryllium Copper		2.54 mm	0.1 in	Circular	Through Hole			-55 °C	125 °C	Black	Liquid Crystal Polymer (LCP)	Receptacle	Female Socket	Gold	2.41 mm	0.095 in	0.1 in	2.54 mm	30 Áin	0.76 Ám			8	All	Push-Pull	0.095 in	2.41 mm
Samtec Inc. SDL-104-TT-10	Solder	2	Beryllium Copper	Tin	2.54 mm	0.1 in	Circular	Through Hole			-55 °C	105 ░C	Black	Liquid Crystal Polymer (LCP)	Receptacle	Female Socket				0.1 in	2.54 mm			3.1 mm	0.122 in	8	All	Push-Pull			0.108 in	2.75 mm
Samtec Inc. SDL-104-T-11	Solder	2	Beryllium Copper		2.54 mm	0.1 in	Circular	Through Hole			-55 °C	125 °C	Black	Liquid Crystal Polymer (LCP)	Receptacle	Female Socket	Gold			0.1 in	2.54 mm	30 Áin	0.76 Ám	3.35 mm	0.132 in	8	All	Push-Pull			0.108 in	2.75 mm
Samtec Inc. SDL-104-T-10	Solder	2	Beryllium Copper		2.54 mm	0.1 in	Circular	Through Hole			-55 °C	125 °C	Black	Liquid Crystal Polymer (LCP)	Receptacle	Female Socket	Gold			0.1 in	2.54 mm	30 Áin	0.76 Ám	3.1 mm	0.122 in	8	All	Push-Pull			0.108 in	2.75 mm
Samtec Inc. SDL-104-G-11	Solder	2	Beryllium Copper	Gold	2.54 mm	0.1 in	Circular	Through Hole	10 çin	0.25 çm	-55 °C	125 °C	Black	Liquid Crystal Polymer (LCP)	Receptacle	Female Socket	Gold			0.1 in	2.54 mm	30 Áin	0.76 Ám	3.35 mm	0.132 in	8	All	Push-Pull			0.108 in	2.75 mm
Samtec Inc. SDL-104-TT-12	Solder	2	Beryllium Copper	Tin	2.54 mm	0.1 in	Circular	Through Hole			-55 °C	105 ░C	Black	Liquid Crystal Polymer (LCP)	Receptacle	Female Socket		2.41 mm	0.095 in	0.1 in	2.54 mm					8	All	Push-Pull	0.095 in	2.41 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SDL-104 Series

8 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
