Q-2K02K000M009F

Active

Amphenol Custom Cable

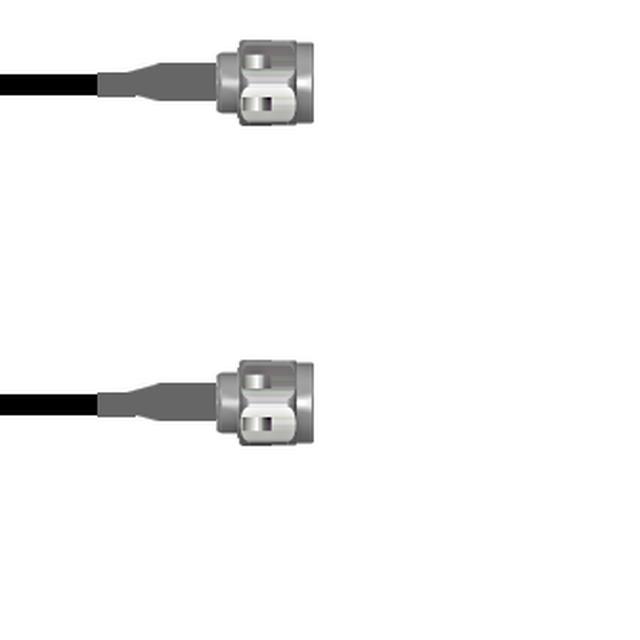

CBL ASSY NTYPE PLUG TO PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2K02K000M009F

Active

Amphenol Custom Cable

CBL ASSY NTYPE PLUG TO PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2K02K000M009F

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	LMR 240
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-2K02K0 Series

Part	1st Contact Gender	Features	Length	Length	Cable Impedance	2nd Contact Gender	Color	2nd Connector	Style	Cable Type	Connector Impedance	Frequency - Max [Max]	2nd Connector Mounting Type	Overall Impedance	1st Connector Mounting Type	Length
Amphenol Custom Cable Q-2K02K000M012i	Male	Shielded	12 "	304.8 mm	50 Ohms	Male	Black	N-Type Plug	N-Type to N-Type	LMR 240	50 Ohms	6000 MHz	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-2K02K000M036i	Male	Shielded	36 in	91.44 cm	50 Ohms	Male	Black	N-Type Plug	N-Type to N-Type	LMR 240	50 Ohms	6000 MHz	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-2K02K000M001F	Male	Shielded	12 "	304.8 mm	50 Ohms	Male	Black	N-Type Plug	N-Type to N-Type	LMR 240	50 Ohms	6000 MHz	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-2K02K000M003M	Male	Shielded	118.1 in	3 m	50 Ohms	Male	Black	N-Type Plug	N-Type to N-Type	LMR 240	50 Ohms	6000 MHz	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	9.8 '
Amphenol Custom Cable Q-2K02K000M009F	Male	Shielded	108 in	2.7 m	50 Ohms	Male	Black	N-Type Plug	N-Type to N-Type	LMR 240	50 Ohms	6000 MHz	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	9 ft
Amphenol Custom Cable Q-2K02K000M1.5M	Male	Shielded	59.1 in	1.5 m	50 Ohms	Male	Black	N-Type Plug	N-Type to N-Type	LMR 240	50 Ohms	6000 MHz	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	4.9 ft
Amphenol Custom Cable Q-2K02K000M072i	Male	Shielded	72 in	1.8 m	50 Ohms	Male	Black	N-Type Plug	N-Type to N-Type	LMR 240	50 Ohms	6000 MHz	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-2K02K000M002F	Male	Shielded	24 "	609.6 mm	50 Ohms	Male	Black	N-Type Plug	N-Type to N-Type	LMR 240	50 Ohms	6000 MHz	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-2K02K000M0.5M	Male	Shielded	19.69 "	50 cm	50 Ohms	Male	Black	N-Type Plug	N-Type to N-Type	LMR 240	50 Ohms	6000 MHz	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-2K02K000M060i	Male	Shielded	5 '	1.5 m	50 Ohms	Male	Black	N-Type Plug	N-Type to N-Type	LMR 240	50 Ohms	6000 MHz	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 133.63
		25	$ 131.04
		50	$ 128.46
		100	$ 125.87
		250	$ 123.29

Description

General part information

Q-2K02K0 Series

Cable Assembly Coaxial N-Type to N-Type LMR 240 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
