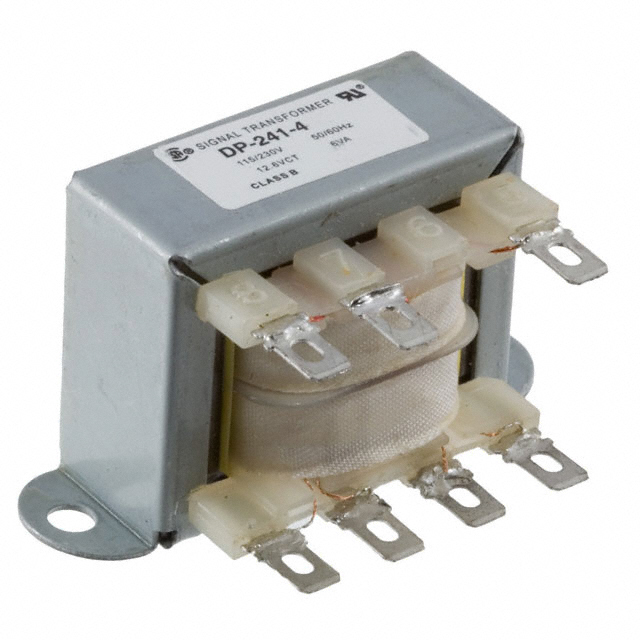

DP-241-5-10

Active

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Active

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Description

General part information

Power Transformers 50\60 Hz, Laminated Transformer

Parameters and characteristics for this part

Power Transformers 50\60 Hz, Laminated Transformer

Part	Weight	Current - Output (Max)	Termination Style	Size / Dimension Length	Size / Dimension Width	Voltage - Secondary (Full Load)	Center Tap	Voltage - Isolation	Power - Max	Height - Seated (Max)	Secondary Winding(s)	Type	Primary Winding(s)	Mounting Type	Voltage - Primary	Voltage - Primary
Signal Transformer DP-241-5-10	0.7 lb	1.2 A	Quick Connect Solder	71.4 mm	36.3 mm	10 V	Yes	2500 Vrms	12 W	42.8 mm	Single	Laminated Core	Dual	Chassis Mount	115V 230V
Signal Transformer 241-4-120L	0.44 lb	50 mA	Wire Leads	60.3 mm	33.3 mm	120 V	Yes	2500 Vrms	6 W	36.2 mm	Single	Laminated Core	Single	Chassis Mount		115 V
Signal Transformer DP-241-6-28L	1.1 lbs	1.1 A	Wire Leads	82.6 mm	44.3 mm	28 V	Yes	2500 Vrms	30 W	49.8 mm	Single	Laminated Core	Dual	Chassis Mount	115V 230V
Signal Transformer DP-241-8-56L	2.8 lbs	1.8 A	Wire Leads	102.4 mm	58.5 mm	56 V	Yes	2500 Vrms	100 VA	67.7 mm	Single	Laminated Core	Dual	Chassis Mount	115V 230V
Signal Transformer 241-8-20L	2.8 lbs	5 A	Wire Leads	102.4 mm	58.5 mm	20 V	Yes	2500 Vrms	100 VA	67.7 mm	Single	Laminated Core	Single	Chassis Mount		115 V
Signal Transformer 241-6-10	1.1 lbs	3 A	Quick Connect Solder	82.6 mm	44.3 mm	10 V	Yes	2500 Vrms	30 W	49.8 mm	Single	Laminated Core	Single	Chassis Mount		115 V
Signal Transformer 241-7-12L	1.7 lbs	4 A	Wire Leads	93.7 mm	49.2 mm	12.6 V	Yes	2500 Vrms	56 VA	57.8 mm	Single	Laminated Core	Single	Chassis Mount		115 V
Signal Transformer DP-241-6-24L	1.1 lbs	1.25 A	Wire Leads	82.6 mm	44.3 mm	24 V	Yes	2500 Vrms	30 W	49.8 mm	Single	Laminated Core	Dual	Chassis Mount	115V 230V
