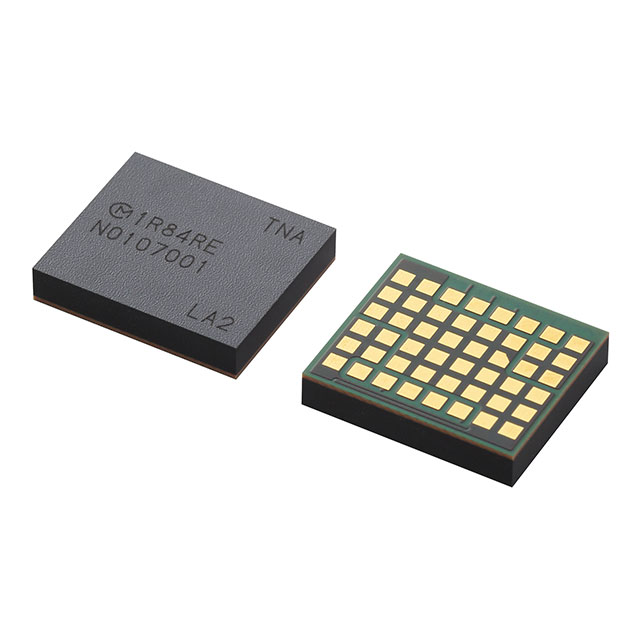

MYTNC1R84RELA2RAD

Active

Murata Power Solutions Inc.

POL CONVERTER, ADJUSTABLE, SYNCHRONOUS BUCK, 6 TO 14.4V IN, 0.7 TO 1.8V OUT, 4A OUT, 1MHZ, LGA-48

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

MYTNC1R84RELA2RAD

Active

Murata Power Solutions Inc.

POL CONVERTER, ADJUSTABLE, SYNCHRONOUS BUCK, 6 TO 14.4V IN, 0.7 TO 1.8V OUT, 4A OUT, 1MHZ, LGA-48

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	100	$ 8.67
Newark	Each (Supplied on Full Reel)	100	$ 10.71
		250	$ 9.95
		500	$ 9.30

Description

General part information

MYTNC1 Series

Miniature UltraBK™ 4A DC–DC converter module suitable for use in PCIe / server applications, FPGA and DSP, datacom / telecom systems, Distributed bus architectures (DBA), programmable logic and mixed voltage systems applications.

Documents

Technical documentation and resources

Datasheet

Specification	MYTNC1R84RELA2RAD	MYTNC1 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	4 A	4 - 6 A
Efficiency	90.5 %	90 - 90.5 %
Features	Remote On/Off, Adjustable Output, Remote Sense	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Size / Dimension [x]	10.5 mm	10.5 mm
Size / Dimension [x]	0.41 "	0.41 "
Size / Dimension [y]	0.35 "	0.35 "
Size / Dimension [y]	9 mm	9 mm
Size / Dimension [z]	0.08 in	0.08 in
Size / Dimension [z]	2.1 mm	2.1 mm
Supplier Device Package	48-LGA (10.5x9)	48-LGA (10.5x9)
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	14.4 V	14.4 V
Voltage - Input (Min) [Min]	6 V	6 V
Voltage - Output 1 [Max]	1.8 V	1.8 V
Voltage - Output 1 [Min]	0.7 V	0.7 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Applications	Current - Output (Max) [Max]	Features	Supplier Device Package	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Number of Outputs	Type	Voltage - Input (Max) [Max]	Efficiency	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]
Murata Power Solutions Inc. MYTNC1R86RELA2RA	-40 °C	105 ░C	6 V	ITE (Commercial)	6 A	Adjustable Output, Remote On/Off, Remote Sense	48-LGA (10.5x9)	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	Surface Mount	1	Non-Isolated PoL Module	14.4 V	90 %	0.7 V	1.8 V
Murata Power Solutions Inc. MYTNC1R86RELA2RAD	-40 °C	105 ░C	6 V	ITE (Commercial)	6 A	Adjustable Output, Remote On/Off, Remote Sense	48-LGA (10.5x9)	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	Surface Mount	1	Non-Isolated PoL Module	14.4 V	90 %	0.7 V	1.8 V
Murata Power Solutions Inc. MYTNC1R84RELA2RA	-40 °C	105 ░C	6 V	ITE (Commercial)	4 A	Adjustable Output, Remote On/Off, Remote Sense	48-LGA (10.5x9)	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	Surface Mount	1	Non-Isolated PoL Module	14.4 V	90.5 %	0.7 V	1.8 V
Murata Power Solutions Inc. MYTNC1R84RELA2RAD	-40 °C	105 ░C	6 V	ITE (Commercial)	4 A	Adjustable Output, Remote On/Off, Remote Sense	48-LGA (10.5x9)	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	Surface Mount	1	Non-Isolated PoL Module	14.4 V	90.5 %	0.7 V	1.8 V
