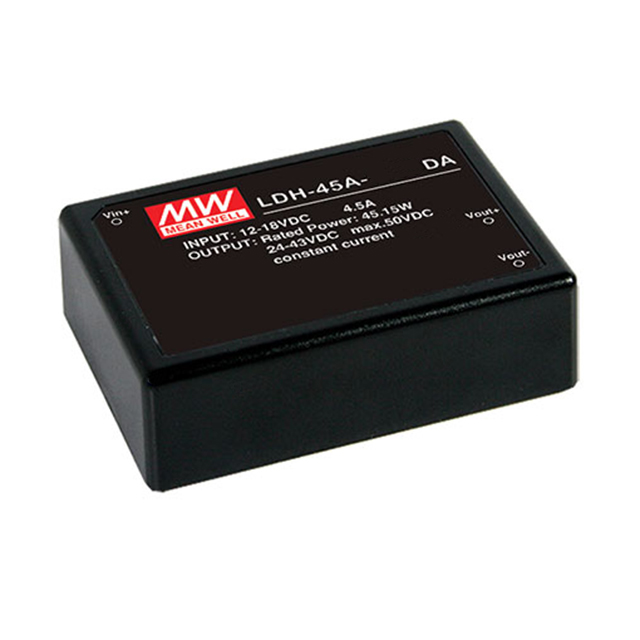

LDH-45A-500DA
ActiveMEAN WELL USA Inc.
LED DRIVER CC BOOST 24-86V 500MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LDH-45A-500DA
ActiveMEAN WELL USA Inc.
LED DRIVER CC BOOST 24-86V 500MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LDH-45A-500DA |
|---|---|
| Approval Agency | CE |
| Current - Output (Max) [Max] | 500 mA |
| Dimming | DALI |
| Efficiency | 90 % |
| Features | SCP, UVLO, Remote On/Off, OVP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 43 W |
| Size / Dimension [x] | 75 mm |
| Size / Dimension [x] | 2.95 in |
| Size / Dimension [y] | 2.09 " |
| Size / Dimension [y] | 53 mm |
| Size / Dimension [z] | 22.7 mm |
| Size / Dimension [z] | 0.89 in |
| Topology | Boost |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Output [Max] | 86 V |
| Voltage - Output [Min] | 24 V |
LDH-45A Series
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output [Min] | Voltage - Output [Max] | Type | Voltage - Input (Min) [Min] | Number of Outputs | Power (Watts) | Features | Mounting Type | Topology | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Efficiency | Dimming | Approval Agency | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | 75 mm | 2.09 " | 2.95 in | 22.7 mm | 0.89 in | 53 mm | 12 V | 64 V | Constant Current | 9 V | 1 | 45 W | OVP Remote On/Off SCP UVLO | Through Hole | Boost | 18 V | 700 mA | -40 °C | 70 °C | 7-DIP Module | 90 % | Analog PWM | CE | |
MEAN WELL USA Inc. | 75 mm | 2.09 " | 2.95 in | 22.7 mm | 0.89 in | 53 mm | 24 V | 86 V | Constant Current | 9 V | 1 | 43 W | OVP Remote On/Off SCP UVLO | Through Hole | Boost | 18 V | 500 mA | -40 °C | 70 °C | 7-DIP Module | 90 % | DALI | CE | |
MEAN WELL USA Inc. | 75 mm | 2.09 " | 2.95 in | 22.7 mm | 0.89 in | 53 mm | 24 V | 64 V | Constant Current | 9 V | 1 | 45 W | OVP Remote On/Off SCP UVLO | Through Hole | Boost | 18 V | 700 mA | -40 °C | 70 °C | 7-DIP Module | 90 % | DALI | CE | |
MEAN WELL USA Inc. | 74.9 mm | 2.09 " | 2.95 in | 22.6 mm | 0.89 in | 53.1 mm | 12 V | 64 V | Constant Current | 9 V | 1 | 45 W | OVP Remote On/Off SCP | Chassis Mount | Boost | 18 V | 700 mA | -40 °C | 70 °C | 90 % | Analog PWM | CE | Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 100 | $ 17.07 | |
Description
General part information
LDH-45A Series
500mA 24 ~ 86V Constant Current LED Driver Boost Topology 1 Output
Documents
Technical documentation and resources
