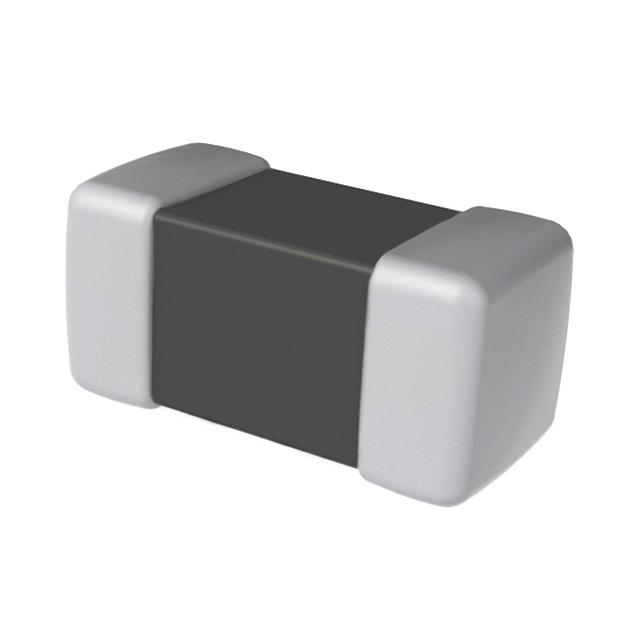

Z0201C330APMST

Obsolete

KEMET

FERRITE BEAD 33 OHM 0201 1LN

Search across all available documentation for this part.

Obsolete

KEMET

FERRITE BEAD 33 OHM 0201 1LN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

33 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0201 (0603 Metric)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

FERRITE BEAD 56 OHM 0201 1LN

Part	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Package / Case	Package / Case	Impedance @ Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Lines	Filter Type	Current Rating (Max) [Max]
KEMET Z0201C560CSMST	0.33 mm	0.013 in	Surface Mount	0603 Metric	0201	56 Ohms	0.3 mm	0.6 mm	0.024 "	0.012 "	1 Ohm	-55 °C	125 °C	1
KEMET Z0201C102GSMST	0.33 mm	0.013 in	Surface Mount	0603 Metric	0201	1 kOhms	0.3 mm	0.6 mm	0.024 "	0.012 "		-55 °C	125 °C	1
KEMET Z0201C152GSMST	0.33 mm	0.013 in	Surface Mount	0603 Metric	0201	1.5 kOhms	0.3 mm	0.6 mm	0.024 "	0.012 "		-55 °C	125 °C	1
KEMET Z0201C220APMST	0.33 mm	0.013 in	Surface Mount	0603 Metric	0201	22 Ohms	0.3 mm	0.6 mm	0.024 "	0.012 "		-55 °C	125 °C	1	Power Line
KEMET Z0201C601ASMST	0.33 mm	0.013 in	Surface Mount	0603 Metric	0201	600 Ohms	0.3 mm	0.6 mm	0.024 "	0.012 "	1.2 Ohm	-55 °C	125 °C	1		150 mA
KEMET Z0201C330APMST	0.33 mm	0.013 in	Surface Mount	0603 Metric	0201	33 Ohms	0.3 mm	0.6 mm	0.024 "	0.012 "		-55 °C	125 °C	1	Power Line
