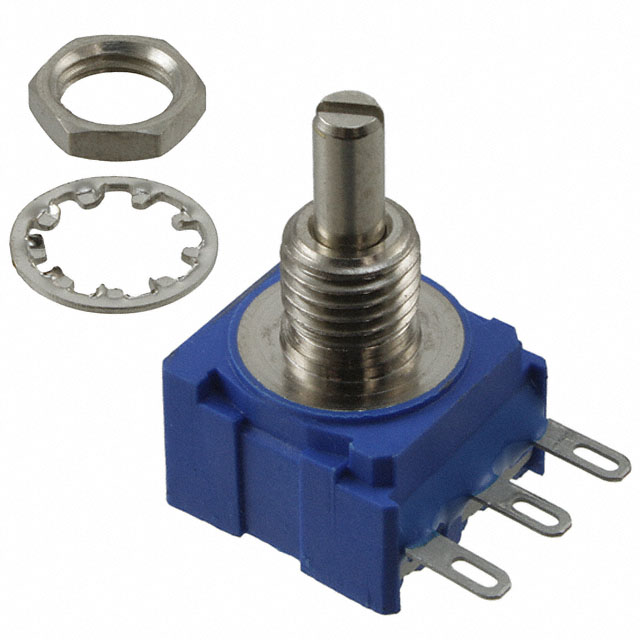

53CAD-E16-D15L

Active

Bourns Inc.

PANEL CONTROL - 1/2" (12.5MM) SQ 1-TURN /TRAY PACKAGING ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

PANEL CONTROL - 1/2" (12.5MM) SQ 1-TURN /TRAY PACKAGING ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Resistive Material	Number of Turns	Taper	Built in Switch	Termination Style	Rotation	Actuator Length [x]	Actuator Length	Number of Gangs	Resistance (Ohms)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Features	Temperature Coefficient	Tolerance	Size - Body [x]	Size - Body [x]	Size - Body [y]	Size - Body [y]	Adjustment Type	Power (Watts)	Power (Watts)	Bushing Thread	Resistance (Ohms)
Bourns Inc. 53CAD-E16-B20L	Slotted	Conductive Plastic	1	Linear		Solder Lug	290 °	0.5 in	12.7 mm	1	100 kOhms	0.125 in	3.18 mm	Sealed	1000 ppm/°C	20 %	0.521 in	13.25 mm	12.5 mm	0.492 in	User Defined	0.5 W	0.5 W	1/4-32
Bourns Inc. 53CAD-E16-D15L	Slotted	Conductive Plastic	1	Logarithmic		Solder Lug	290 °	0.5 in	12.7 mm	1		0.125 in	3.18 mm	Sealed	1000 ppm/°C	20 %	0.521 in	13.25 mm	12.5 mm	0.492 in	User Defined	250 mW	0.25 W	1/4-32	10k

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10k Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.25W, 1/4W Solder Lug
