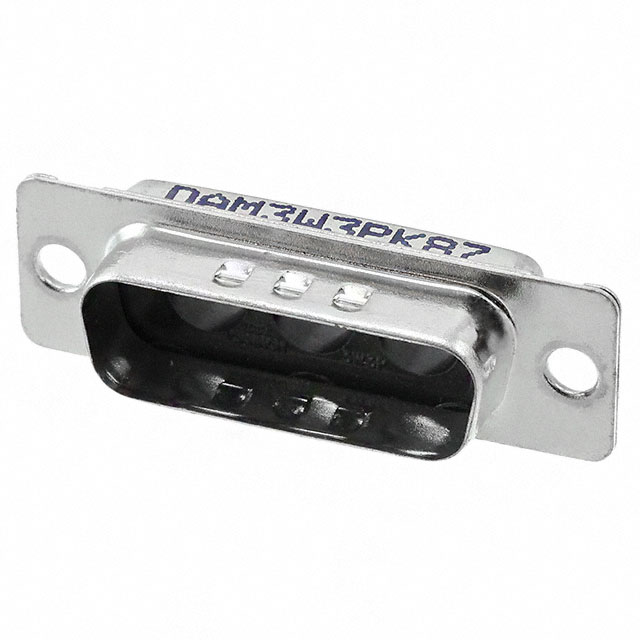

DAM-3W3P-K87

Active

ITT Cannon, LLC

CONN D-SUB HOUSING PLUG 3POS

Deep-Dive with AI

Search across all available documentation for this part.

DAM-3W3P-K87

Active

ITT Cannon, LLC

CONN D-SUB HOUSING PLUG 3POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DAM-3W3P-K87

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug for Male Contacts
Contact Type	Coax, Power
Dielectric Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Note	Contacts Not Included
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3

DAM3 Series

Part	Flange Feature	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Note	Dielectric Material	Connector Style	Connector Type	Contact Type	Color	Shell Material, Finish	Mating Cycles	Shell Size, Connector Layout
ITT Cannon, LLC DAM-3W3P-K87	Housing/Shell (Unthreaded)	1	-55 °C	125 °C	3	2 (DA A)	3W3	Grounding Indents Shielded	Contacts Not Included	Polycyclohexylenedimethylene Terephthalate (PCT)	Combo D-Sub	Plug for Male Contacts	Coax Power	Black
ITT Cannon, LLC DAM3W3PF225	Housing/Shell (Unthreaded)	1	-55 °C	125 °C	3	2 (DA A)	3W3	Shielded	Contacts Not Included	Polycyclohexylenedimethylene Terephthalate (PCT)	Combo D-Sub	Plug for Male Contacts	Coax Power	Black	Stainless Steel
ITT Cannon, LLC DAM3W3SF225	Housing/Shell (Unthreaded)	1	-55 °C	125 °C	3	2 (DA A)	3W3		Contacts Not Included	Polycyclohexylenedimethylene Terephthalate (PCT)	Combo D-Sub	Receptacle for Female Contacts	Coax Power	Black	Stainless Steel	500
ITT Cannon, LLC DAM3WK3S	Housing/Shell (Unthreaded)	1	-55 °C	125 °C	3			Shielded	Contacts Not Included	Polycyclohexylenedimethylene Terephthalate (PCT)	Combo D-Sub	Receptacle for Female Contacts	Coax Power	Black	Steel Yellow Chromate Plated Zinc		2 (DA A) - 3WK3
ITT Cannon, LLC DAM3W3PA101	Housing/Shell (Unthreaded)	1	-55 °C	125 °C	3	2 (DA A)	3W3	Shielded	Contacts Not Included	Polycyclohexylenedimethylene Terephthalate (PCT)	Combo D-Sub	Plug for Male Contacts	Coax Power	Black	Steel Yellow Chromate Plated Cadmium
ITT Cannon, LLC DAM3W3SN	Housing/Shell (Unthreaded)	1	-55 °C	125 °C	3	2 (DA A)	3W3		Contacts Not Included	Polycyclohexylenedimethylene Terephthalate (PCT)	Combo D-Sub	Receptacle for Female Contacts	Coax Power	Black	Steel Yellow Chromate Plated Zinc	500
ITT Cannon, LLC DAM3W3PNM	Housing/Shell (Unthreaded)	1	-55 °C	125 °C	3	2 (DA A)	3W3		Contacts Not Included	Polycyclohexylenedimethylene Terephthalate (PCT)	Combo D-Sub	Plug for Male Contacts	Coax Power	Black	Brass Yellow Chromate Plated Cadmium	500
ITT Cannon, LLC DAM3WK3PK87	Housing/Shell (Unthreaded)	1	-55 °C	125 °C	3			Grounding Indents	Contacts Not Included	Polycyclohexylenedimethylene Terephthalate (PCT)	Combo D-Sub	Plug for Male Contacts	Coax Power	Black	Steel Tin-Lead Plated		2 (DA A) - 3WK3
ITT Cannon, LLC DAM3W3SA101	Housing/Shell (Unthreaded)	1	-55 °C	125 °C	3	2 (DA A)	3W3	Shielded	Contacts Not Included	Polycyclohexylenedimethylene Terephthalate (PCT)	Combo D-Sub	Receptacle for Female Contacts	Coax Power	Black	Steel Yellow Chromate Plated Cadmium
ITT Cannon, LLC DAM3W3S	Housing/Shell (Unthreaded)	1	-55 °C	125 °C	3	2 (DA A)	3W3	Shielded	Contacts Not Included	Polycyclohexylenedimethylene Terephthalate (PCT)	Combo D-Sub	Receptacle for Female Contacts	Coax Power	Black	Steel Yellow Chromate Plated Zinc

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.82
		10	$ 7.50
		25	$ 7.03
		70	$ 6.53
		140	$ 6.22
		280	$ 5.92
		560	$ 5.64
		1050	$ 5.40

Description

General part information

DAM3 Series

Plug for Male Contacts Housing D-Sub, Combo Connector 3 (Coax or Power) Position

Documents

Technical documentation and resources

No documents available
