Specification	ABB-04BFFC-LL7SP0

Backshell Material, Plating	Glass Filled, Nylon, Polyamide (PA)
Cable Opening (Max)	0.236 in
Cable Opening (Min)	0.197 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	10 A
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Glass Filled, PA, Polyamide, Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Position Types	Data
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Crimp
Voltage Rating	250 V

ABB-04BFFC Series

Part	Shielding	Insert Material	Color	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Contact Material	Backshell Material, Plating	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Material Flammability Rating	Primary Material	Fastening Type	Voltage Rating	Position Types	Number of Positions	Contact Finish - Mating	Shell Size - Insert	Features	Shell Material	Current Rating	Orientation	Connector Type	Cable Opening (Max)	Cable Opening (Min)

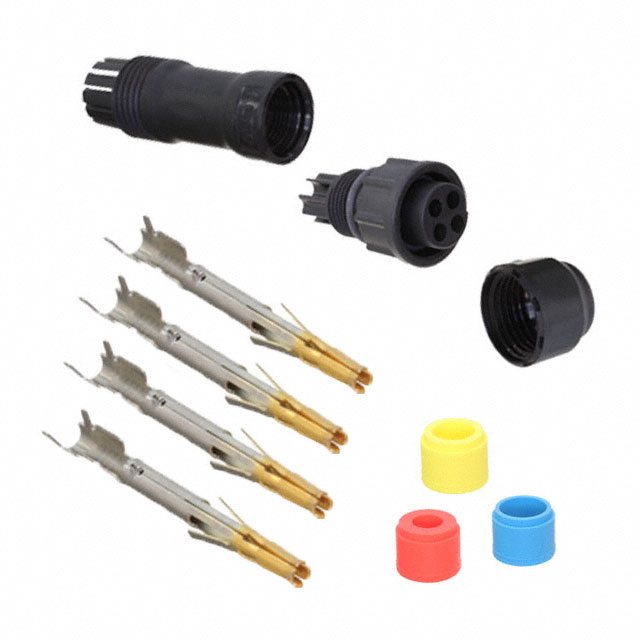

McGill Microwave Systems ABB-04BFFC-LL7AP0	Unshielded	Glass Filled Nylon PA Polyamide	Black	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Copper Alloy	Glass Filled Nylon Polyamide (PA)	-40 °C	105 °C	Crimp	UL94 V-0	Plastic	Bayonet Lock	300 VAC/DC	Data	4	Gold	B	Backshell Coupling Nut	Glass Filled Nylon Polyamide (PA)	10 A	Keyed	Female Sockets Plug
McGill Microwave Systems ABB-04BFFC-SL7LP0	Unshielded	Glass Filled Nylon PA Polyamide	Black	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Copper Alloy	Glass Filled Nylon Polyamide (PA)	-40 °C	105 °C	Crimp	UL94 V-0	Plastic	Threaded	250 V	Data	4	Gold	B	Backshell	Glass Filled Nylon Polyamide (PA)	10 A	Keyed	Female Sockets Plug	0.394 in	0.315 in
McGill Microwave Systems ABB-04BFFC-SL7MP0	Unshielded	Glass Filled Nylon PA Polyamide	Black	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Copper Alloy	Glass Filled Nylon Polyamide (PA)	-40 °C	105 °C	Crimp	UL94 V-0	Plastic	Threaded	250 V	Data	4	Gold	B	Backshell	Glass Filled Nylon Polyamide (PA)	10 A	Keyed	Female Sockets Plug	0.315 in	0.236 in
McGill Microwave Systems ABB-04BFFC-SL7AP0	Unshielded	Glass Filled Nylon PA Polyamide	Black	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Copper Alloy	Glass Filled Nylon Polyamide (PA)	-40 °C	105 °C	Crimp	UL94 V-0	Plastic	Threaded	300 VAC/DC	Data	4	Gold	B	Backshell Coupling Nut	Glass Filled Nylon Polyamide (PA)	10 A	Keyed	Female Sockets Plug
McGill Microwave Systems ABB-04BFFC-LL7SP0	Unshielded	Glass Filled Nylon PA Polyamide	Black	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Copper Alloy	Glass Filled Nylon Polyamide (PA)	-40 °C	105 °C	Crimp	UL94 V-0	Plastic	Threaded	250 V	Data	4	Gold	B	Backshell Coupling Nut	Glass Filled Nylon Polyamide (PA)	10 A	Keyed	Female Sockets Plug	0.236 in	0.197 in
