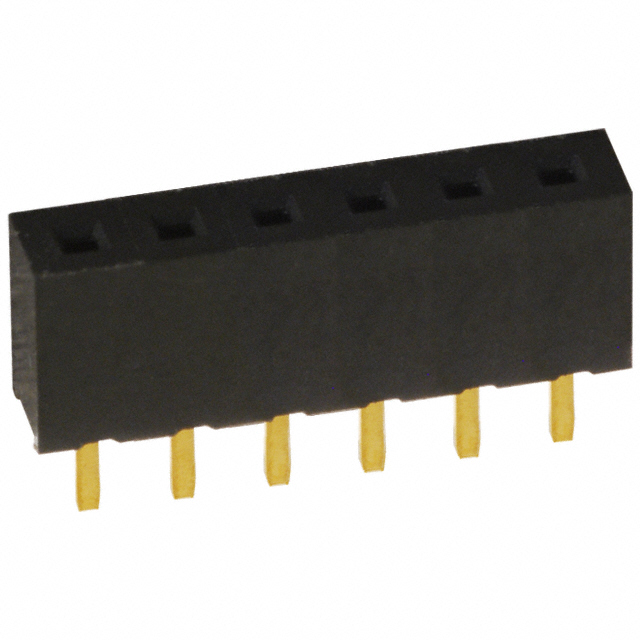

Specification	PPPN061BFCN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Finish Thickness - Post (string_set)	Flash
Contact Length - Post	0.094 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.173 in
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.079 in
Style	Board
Termination	Solder

PPPN061 Series

Part	Current Rating	Termination	Insulation Height	Contact Finish Thickness - Mating	Fastening Type	Contact Length - Post	Contact Type	Insulation Color	Mounting Type	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Contact Finish - Post	Number of Rows	Pitch - Mating	Number of Positions Loaded	Material Flammability Rating	Connector Type	Style	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)	Voltage Rating
Sullins Connector Solutions PPPN061BFCN	2 A	Solder	0.173 in	Flash	Push-Pull	0.094 in	Female Socket	Black	Through Hole	6	-40 °C	105 °C	Gold	Gold	1	0.079 in	All	UL94 V-0	Header	Board	Phosphor Bronze	Polyester	Square	Flash	Flash
Sullins Connector Solutions PPPN061BFLC	2 A	Solder	0.181 in	Flash	Push-Pull		Female Socket	Black	Surface Mount	6	-40 °C	105 °C	Gold	Gold	1	0.079 in	All	UL94 V-0	Header	Board	Phosphor Bronze	Polyester	Square	Flash	Flash	150 VDC
Sullins Connector Solutions PPPN061FGGN	2 A	Solder	0.11 in	Flash	Push-Pull	0.122 in	Female Socket	Black	Right Angle Through Hole	6	-40 °C	105 °C	Gold	Gold	1	0.079 in	All	UL94 V-0	Header	Board	Phosphor Bronze	Polyester	Square	Flash	Flash
Sullins Connector Solutions PPPN061BFLD	2 A	Solder	0.181 in	Flash	Push-Pull		Female Socket	Black	Surface Mount	6	-40 °C	105 °C	Gold	Gold	1	0.079 in	All	UL94 V-0	Header	Board	Phosphor Bronze	Polyester	Square	Flash	Flash	150 VDC
