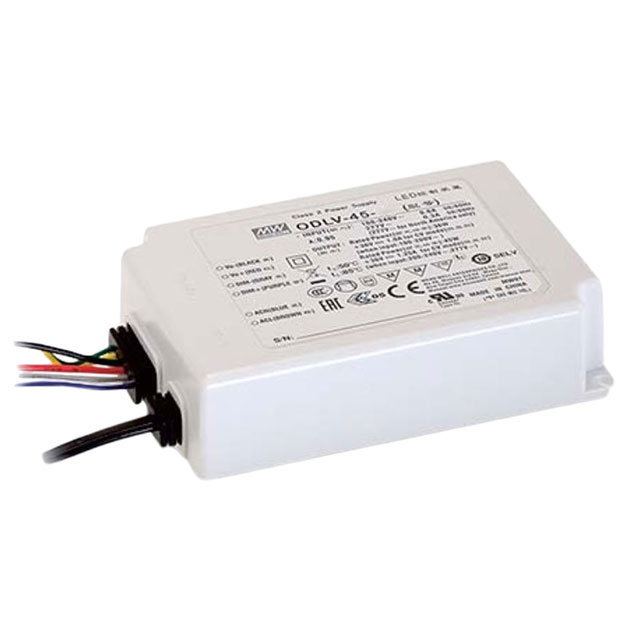

ODLV-45 Series

Part	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Approval Agency	Voltage - Isolation	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Topology	Type	Voltage - Input (Min)	Number of Outputs	Voltage - Input (Max)	Efficiency	Ratings	Dimming	Current - Output (Max)	Voltage - Output	Power (Watts)	Features	Mounting Type
MEAN WELL USA Inc. ODLV-45-12	3.03 in	1.12 in	4.37 in	CB CCC CE cURus EAC ENEC	3750 VDC	85 °C	-20 °C	Wire Leads	AC DC Converter	Constant Voltage	90 VAC	1	295 VAC	84 %	IP67	Analog PWM	3 A	12 V	36 W	OCP SCP	Chassis Mount
MEAN WELL USA Inc. ODLV-45A-12	3.03 in	1.12 in	4.37 in	CB CCC CE cURus EAC ENEC	3750 VDC	85 °C	-20 °C	Wire Leads	AC DC Converter	Constant Voltage	90 VAC	1	295 VAC	84 %	IP67	Analog PWM	3 A	12 V	36 W	OCP SCP	Chassis Mount
MEAN WELL USA Inc. ODLV-45-36	3.03 in	1.12 in	4.37 in	CB CCC CE cURus EAC ENEC	3750 VDC	85 °C	-20 °C	Wire Leads	AC DC Converter	Constant Voltage	90 VAC	1	295 VAC	88 %	IP67	Analog PWM	1.25 A	36 V	45 W	OCP SCP	Chassis Mount
MEAN WELL USA Inc. ODLV-45A-36	3.03 in	1.12 in	4.37 in	CB CCC CE cURus EAC ENEC	3750 VDC	85 °C	-20 °C	Wire Leads	AC DC Converter	Constant Voltage	90 VAC	1	295 VAC	88 %	IP67	Analog PWM	1.25 A	36 V	45 W	OCP SCP	Chassis Mount
MEAN WELL USA Inc. ODLV-45A-48	3.03 in	1.12 in	4.37 in	CB CCC CE cURus EAC ENEC	3750 VDC	85 °C	-20 °C	Wire Leads	AC DC Converter	Constant Voltage	90 VAC	1	295 VAC	88 %	IP67	Analog PWM	940 mA	48 V	45 W	OCP SCP	Chassis Mount
