N-7B-19

Active

Essentra Access Solutions

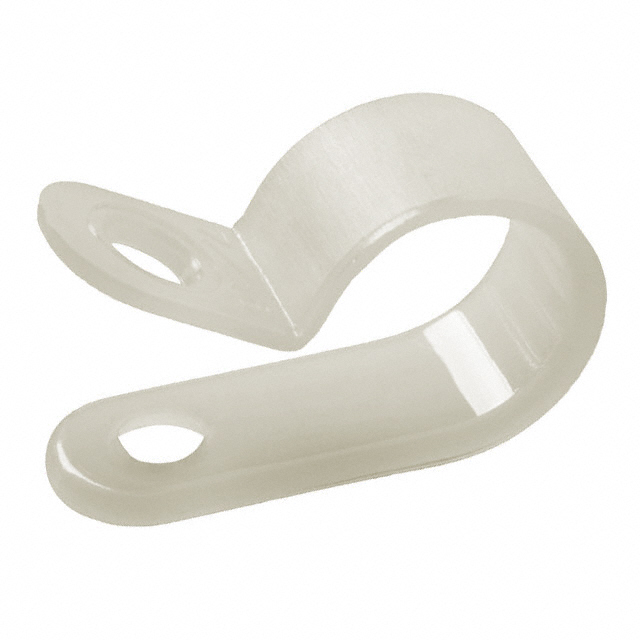

FASTENER, SCREW MOUNT CABLE CLAMP, 11.1 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 12.7 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 11.1 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 12.7 MM

Technical Specifications

Parameters and characteristics for this part

Specification	N-7B-19

Bundle Center to Mounting Center [x]	0.531 in
Bundle Center to Mounting Center [x]	13.5 mm
Color	Natural
Features	Flame Retardant
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Material Thickness	0.063 in
Material Thickness	1.6 mm
Mounting Type	Fastener
Opening Size [custom]	0.438 in
Opening Size [custom]	11.13 mm
Panel Hole Size	5.18 mm
Panel Hole Size [diameter]	0.204 in
Screw Size	M5
Screw Size	#10
Type	Clamp, P-Type

Part	Material	Panel Hole Size [diameter]	Panel Hole Size	Material Flammability Rating	Opening Size [custom]	Opening Size [custom]	Mounting Type	Screw Size	Screw Size	Type	Material Thickness	Material Thickness	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Color	Features
Essentra Access Solutions N-7B-BK	Polyamide (PA66) Nylon 6/6	0.204 in	5.18 mm	UL94 V-2	0.438 in	11.13 mm	Fastener	M5	#10	Clamp P-Type	0.063 in	1.6 mm	0.531 in	13.5 mm	Black
Essentra Access Solutions N-7B	Polyamide (PA66) Nylon 6/6	0.204 in	5.18 mm	UL94 V-2	0.438 in	11.13 mm	Fastener	M5	#10	Clamp P-Type	0.063 in	1.6 mm	0.531 in	13.5 mm	Natural
Essentra Access Solutions N-7B-19	Polyamide (PA66) Nylon 6/6	0.204 in	5.18 mm	UL94 V-0	0.438 in	11.13 mm	Fastener	M5	#10	Clamp P-Type	0.063 in	1.6 mm	0.531 in	13.5 mm	Natural	Flame Retardant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clamp, P-Type Natural Fastener 0.438" (11.13mm)
