580-M10-A4
ActiveJ.W. Winco

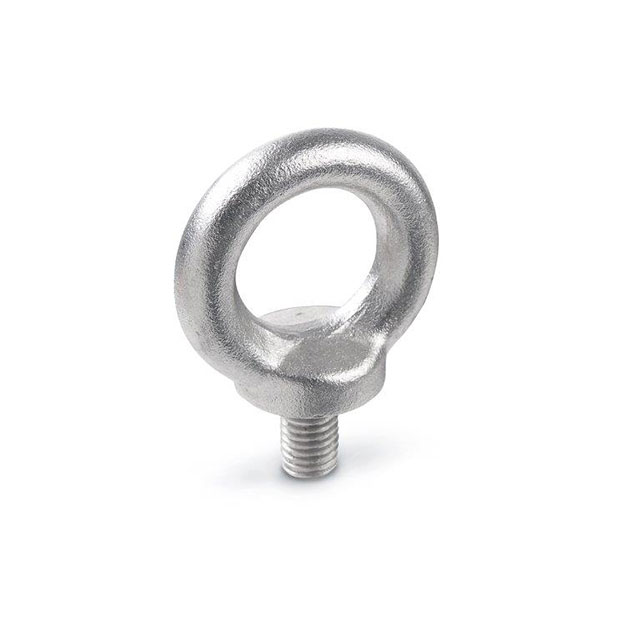

STAINLESS STEEL LIFTING EYE BOLT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
580-M10-A4
ActiveJ.W. Winco
STAINLESS STEEL LIFTING EYE BOLT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 580-M10-A4 |
|---|---|
| Head Diameter [diameter] | 1.77 in |
| Head Diameter [diameter] | 44.96 mm |
| Head Height | 1.77 in |
| Head Height | 44.96 mm |
| Length - Below Head [x] | 0.67 in |
| Length - Below Head [x] | 17.02 mm |
| Length - Overall [x] | 61.98 mm |
| Length - Overall [x] | 2.44 in |
| Material | Stainless Steel |
| Thread Size | M10 |
| Type | Bolt |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.56 | |
Description
General part information
580-M10 Series
M10 Spade Head Bolt Drive Stainless Steel
