0801661

Active

Phoenix Contact

CONN SEALING FRAME WITH LATCH

Search across all available documentation for this part.

Active

Phoenix Contact

CONN SEALING FRAME WITH LATCH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0801661	CES-B24 Series

Accessory Type	Locking Latch, Sealing Frame	Sealing Frame, Screw Locking, Locking Latch, Sealing Frame, Gasket, Flat
Features	-	120 mm
Features	-	10 (B24)
Features [x]	58.5 mm	57.5 - 58.5 mm
Features [x]	2.3 in	2.26 - 2.3 in
Features [y]	5.79 in	4.72 - 5.79 in
Features [y]	147 mm	147 mm
For Use With/Related Products	PLUSCON CES Cable Sleeves	Cables with 0.43" (11.0mm) or Smaller OD, PLUSCON CES Cable Sleeves, PLUSCON CES Sealing Frames
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Rubber

CES-B24-10XSRC-BK

Part	For Use With/Related Products	Material	Features [y]	Features [y]	Features	Features [x]	Features [x]	Accessory Type	Features [y]
Phoenix Contact 1411074	Cables with 0.43" (11.0mm) or Smaller OD	Polyamide (PA), Nylon	4.72 in	120 mm	10 (B24)	58.5 mm	2.3 in	Sealing Frame, Screw Locking
Phoenix Contact 0801661	PLUSCON CES Cable Sleeves	Polyamide (PA), Nylon	5.79 in			58.5 mm	2.3 in	Locking Latch, Sealing Frame	147 mm
Phoenix Contact 0801727	PLUSCON CES Sealing Frames	Rubber	5.79 in			57.5 mm	2.26 in	Gasket, Flat	147 mm
Phoenix Contact 0801658	PLUSCON CES Cable Sleeves	Polyamide (PA), Nylon	5.79 in			58.5 mm	2.3 in	Sealing Frame, Screw Locking	147 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

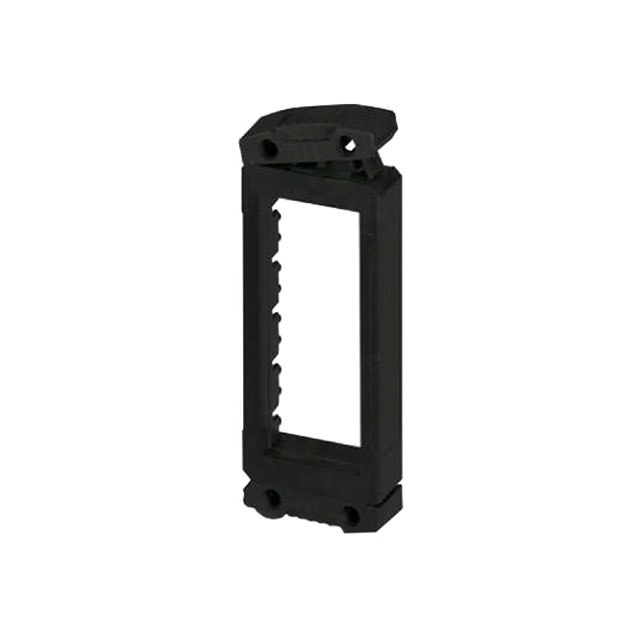

Sealing Frame, Locking Latch For PLUSCON CES Cable Sleeves

Technical documentation and resources

No documents available
