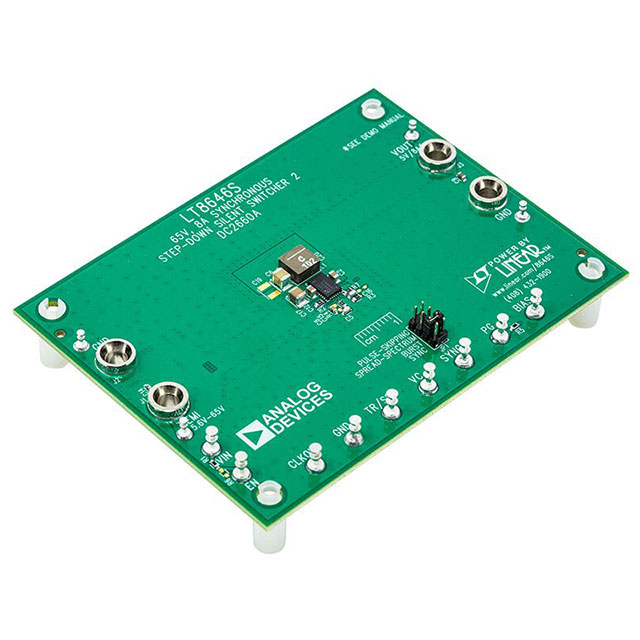

DC2660A

Active

Analog Devices

EVAL BOARD FOR LT8646S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DC2660A

Active

Analog Devices

EVAL BOARD FOR LT8646S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC2660A

Board Type	Fully Populated
Current - Output	8 A
Frequency - Switching	2 MHz
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	LT8646S
Voltage - Input [Max]	65 V
Voltage - Input [Min]	5.6 V
Voltage - Output	5 V

LT8646S Series

65V, 8A Synchronous Step-Down Silent Switcher 2 with 2.5μA Quiescent Current

Part	Regulator Topology	Frequency - Switching	Current - Output	Board Type	Voltage - Output	Outputs and Type	Outputs and Type	Supplied Contents	Main Purpose	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Topology	Function	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed) [Min]	Package / Case	Voltage - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Output Type	Output Configuration	Qualification	Grade	Frequency - Switching [Max]	Frequency - Switching [Min]	Supplier Device Package	Mounting Type	Number of Outputs
Analog Devices DC2660A	Buck	2 MHz	8 A	Fully Populated	5 V	Non-Isolated	1	Board(s)	DC/DC Step Down	LT8646S	5.6 V	65 V
Analog Devices LT8646SIV#WPBF			8 A										Buck	Step-Down	65 V	0.97 V	32-TFQFN Exposed Pad	12 V	-40 °C	125 ¯C	3.4 V	Adjustable	Positive	AEC-Q100	Automotive	2.2 MHz	200 kHz	32-LQFN (6x4)	Surface Mount	1
Analog Devices LT8646SEV#WPBF			8 A										Buck	Step-Down	65 V	0.97 V	32-TFQFN Exposed Pad	12 V	-40 °C	125 ¯C	3.4 V	Adjustable	Positive	AEC-Q100	Automotive	2.2 MHz	200 kHz	32-LQFN (6x4)	Surface Mount	1
Analog Devices LT8646SEV#PBF			8 A										Buck	Step-Down	65 V	0.97 V	32-TFQFN Exposed Pad	12 V	-40 °C	125 ¯C	3.4 V	Adjustable	Positive			2.2 MHz	200 kHz	32-LQFN (6x4)	Surface Mount	1
Analog Devices LT8646SIV#TRPBF			8 A										Buck	Step-Down	65 V	0.97 V	32-TFQFN Exposed Pad	65 V	-40 °C	125 ¯C	3.4 V	Adjustable	Positive	AEC-Q100	Automotive	2.2 MHz	200 kHz	32-LQFN (6x4)	Surface Mount	1
Analog Devices LT8646SEV#TRPBF			8 A										Buck	Step-Down	65 V	0.97 V	32-TFQFN Exposed Pad	65 V	-40 °C	125 ¯C	3.4 V	Adjustable	Positive	AEC-Q100	Automotive	2.2 MHz	200 kHz	32-LQFN (6x4)	Surface Mount	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 117.65

Description

General part information

LT8646S Series

The LT8645S/LT8646S synchronous step-down regulator features second generation Silent Switcher architecture designed to minimize EMI emissions while delivering high efficiency at high switching frequencies. This includes the integration of bypass capacitors to optimize all the fast current loops inside and make it easy to achieve advertised EMI performance by eliminating layout sensitivity.The fast, clean, low-overshoot switching edges enable high efficiency operation even at high switching frequencies, leading to a small overall solution size. Peak current mode control with a 40ns minimum on-time allows high step-down ratios even at high switching frequencies. The LT8646S has external compensation to enable current sharing and fast transient response at high switching frequencies.Burst Mode®operation enables ultralow standby current consumption, pulse-skipping mode allows full switching frequency at lower output loads, or spread spectrum operation can further reduce EMI emissions.ApplicationsAutomotive and Industrial SuppliesGeneral Purpose Step-DownGSM Power Supplies
