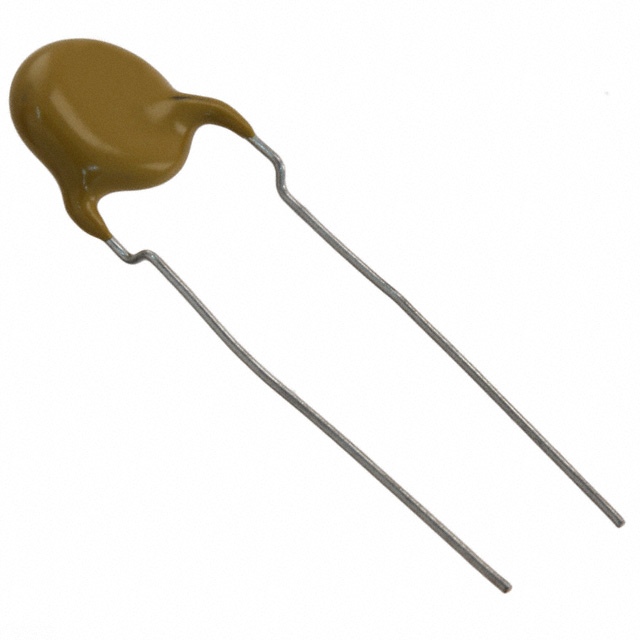

Specification	VY2392M43Y5US6UV0

Applications	Safety
Capacitance	3900 pF
Height - Seated (Max)	0.591 in
Lead Spacing	0.394 in
Lead Style	Formed Leads - Kinked
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Disc, Radial
Ratings	Y2, X1
Size / Dimension Diameter	0.433 in
Temperature Coefficient	Y5U (E)
Tolerance	20 %
Voltage - Rated	440 V

VY2 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Capacitance	Voltage - Rated	Temperature Coefficient	Tolerance	Lead Style	Mounting Type	Size / Dimension Diameter	Height - Seated (Max)	Lead Spacing	Applications	Ratings	Package / Case
Vishay Dale VY2100K29U2JS63V5	125 °C	-40 °C	10 pF	440 V	U2J	10 %	Formed Leads - Kinked	Through Hole	0.295 in	0.453 in	0.197 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2151K29Y5SS6TV5	125 °C	-40 °C	150 pF	440 V	Y5S	10 %	Formed Leads - Kinked	Through Hole	0.295 in	0.453 in	0.197 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2472M49Y5US6TV7	125 °C	-40 °C	4700 pF	440 V	Y5U (E)	20 %	Formed Leads - Kinked	Through Hole	0.492 in	16.51 mm	0.295 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2103M59Y5VS6TV0	125 °C	-40 °C	10000 pF	440 V	Y5V (F)	20 %	Formed Leads - Kinked	Through Hole	0.591 in	0.748 in	0.394 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2103M63Y5US63V0	125 °C	-40 °C	10000 pF	440 V	Y5U (E)	20 %	Formed Leads - Kinked	Through Hole	0.63 in	0.787 in	0.394 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2101K29Y5SG63V7	125 °C	-40 °C	100 pF	440 V	Y5S	10 %	Formed Leads - Kinked	Through Hole	0.295 in	0.453 in	0.295 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2682M47Y5VS63V7	125 °C	-40 °C	6800 pF	440 V	Y5V (F)	20 %	Formed Leads - Kinked	Through Hole	0.472 in	0.63 in	0.295 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2220K29U2JS63V7	125 °C	-40 °C	22 pF	440 V	U2J	10 %	Formed Leads - Kinked	Through Hole	0.295 in	0.453 in	0.295 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2682M47Y5VS63V0	125 °C	-40 °C	6800 pF	440 V	Y5V (F)	20 %	Formed Leads - Kinked	Through Hole	0.472 in	0.63 in	0.394 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2222M35Y5US6UV0	125 °C	-40 °C	2200 pF	440 V	Y5U (E)	20 %	Formed Leads - Kinked	Through Hole	0.354 in	0.512 in	0.394 in	Safety	X1 Y2	Disc Radial
