VY2682M47Y5VS63V7

Active

Vishay Dale

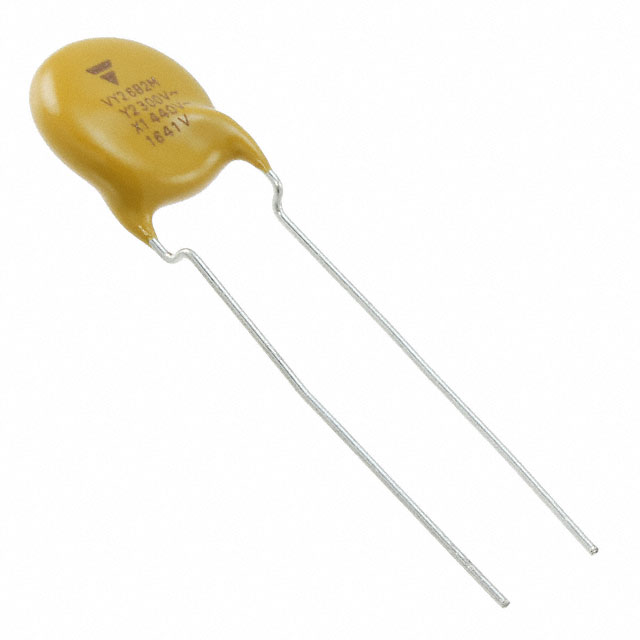

SAFETY CAPACITORS 6800PF X440 Y300VAC 20% Y5V

VY2682M47Y5VS63V7

Active

Vishay Dale

SAFETY CAPACITORS 6800PF X440 Y300VAC 20% Y5V

Description Specifications Series Pricing CAD Documents

Description

General part information

VY2 Series

6800 pF ±20% 440VAC Ceramic Capacitor Y5V (F) Radial, Disc

Technical Specifications

Parameters and characteristics for this part

Specification	VY2682M47Y5VS63V7

Applications	Safety
Capacitance	6800 pF
Height - Seated (Max)	0.63 in
Lead Spacing	0.295 in
Lead Style	Formed Leads - Kinked
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Disc, Radial
Ratings	Y2, X1
Size / Dimension Diameter	0.472 in
Temperature Coefficient	Y5V (F)
Tolerance	20 %
Voltage - Rated	440 V

VY2 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Capacitance	Voltage - Rated	Temperature Coefficient	Tolerance	Lead Style	Mounting Type	Size / Dimension Diameter	Height - Seated (Max)	Lead Spacing	Applications	Ratings	Package / Case
Vishay Dale VY2100K29U2JS63V5	125 °C	-40 °C	10 pF	440 V	U2J	10 %	Formed Leads - Kinked	Through Hole	0.295 in	0.453 in	0.197 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2151K29Y5SS6TV5	125 °C	-40 °C	150 pF	440 V	Y5S	10 %	Formed Leads - Kinked	Through Hole	0.295 in	0.453 in	0.197 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2472M49Y5US6TV7	125 °C	-40 °C	4700 pF	440 V	Y5U (E)	20 %	Formed Leads - Kinked	Through Hole	0.492 in	16.51 mm	0.295 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2103M59Y5VS6TV0	125 °C	-40 °C	10000 pF	440 V	Y5V (F)	20 %	Formed Leads - Kinked	Through Hole	0.591 in	0.748 in	0.394 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2103M63Y5US63V0	125 °C	-40 °C	10000 pF	440 V	Y5U (E)	20 %	Formed Leads - Kinked	Through Hole	0.63 in	0.787 in	0.394 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2101K29Y5SG63V7	125 °C	-40 °C	100 pF	440 V	Y5S	10 %	Formed Leads - Kinked	Through Hole	0.295 in	0.453 in	0.295 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2682M47Y5VS63V7	125 °C	-40 °C	6800 pF	440 V	Y5V (F)	20 %	Formed Leads - Kinked	Through Hole	0.472 in	0.63 in	0.295 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2220K29U2JS63V7	125 °C	-40 °C	22 pF	440 V	U2J	10 %	Formed Leads - Kinked	Through Hole	0.295 in	0.453 in	0.295 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2682M47Y5VS63V0	125 °C	-40 °C	6800 pF	440 V	Y5V (F)	20 %	Formed Leads - Kinked	Through Hole	0.472 in	0.63 in	0.394 in	Safety	X1 Y2	Disc Radial
Vishay Dale VY2222M35Y5US6UV0	125 °C	-40 °C	2200 pF	440 V	Y5U (E)	20 %	Formed Leads - Kinked	Through Hole	0.354 in	0.512 in	0.394 in	Safety	X1 Y2	Disc Radial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

VY2 Series Brochure

Capacitor General Info

VY2682M47Y5VS63V7 | Datasheet
